| Product Name: | Place Machine\ LED Mounter\LED Assembly Machine | Dimension: | 2550*1650*1550mm |
|---|---|---|---|
| System: | Windows7 | Software: | R&D Independently |
| Warranty: | 1 Year | Speed: | Speed |
| Power Consumption: | 4KW | Total Weight: | 1250kg |
| Applicable Components: | 0402,0805,0603,1206,SOP | Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter,smt Nozzle |
| Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine | Power Supply: | AC220V 50Hz / AC110V 60Hz |
| Condition: | 100% Original,Brand-new | Mounting Speed: | 40000 CPH |
| Feeders: | 28 | Pcb Thickness: | 0.5-5 Mm |
| High Light: | 12 Heads LED Pick And Place Machine,Windows7 LED Pick And Place Machine,SMT Placement Machine 45000 CPH |
||
Details of led chip mounter

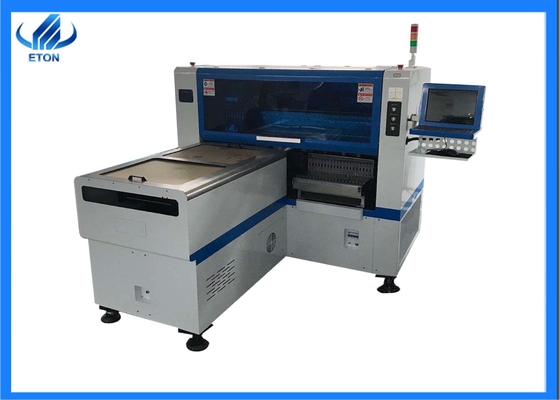

HT-E8S-1200/600 PICK AND PLACE MACHINE
Automatic placement machine is used to achieve high-speed, high-precision automatic placement of components equipment, is the most critical and complex equipment in the entire SMT production. The SMT machine is the main equipment in the SMT production line
Machine Features:
1. Electric Feeder with Double motor: 8mm, 12mm, 16mm, 24mm,32mm electronic feeder.according your products to comstized.
2. Precision camera visual recognition system:flight identification visual alignment, Mark calibration and 2 sets of imported identification cameras, improve higher accuracy, stability and speed, greatly improve production efficiency.
3.PCB support system
In order to avoid deformation or bending of PCB board due to excessive pressure during mounting, support PCB board with thimble or ejector rod to protect PCB board and ensure mounting effect.
4. Mounting of various components
Various kinds of led chips, Capacitor,resistor,IC,shape components,etc
| HT-E8S SMT machine | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.02mm(repeat precision) | |
| Mounting height | <36mm | |
| Mounting speed | 40000CPH | |
| Components space | 0.2mm | |
| No.of feeders station | 30PCS | |
| No.of nozzles | 8PCS | |
| Power | 380AC 50HZ | |
| Power consumption | 4KW | |
| Air pressure | >5.0kg /cm² | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 1set | Independent research and development by ETON | |
| X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
| Feeding way | Electric feeder with double motor | |
E8S pick and place machine:SMT production line solution
SMT line layout:
We provide SMT machine,semi-auto stencil printer,full automatic stencil printer,loader machine,unloader machine,SMT PCB conveyor,reflow oven,etc
After sale Service
Before buying machine
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you .
2) 24 hours online service and technical support, solve your questions quickly.
3) Sound company organization and working system, guarantee you a fast delivery.
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices.
lwe will send our engineer to your factory to install machine and training freely.
lWe have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
lStandard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
Application
Application for LED bulbs,led light,tube,bulb,panel light,flexible light strip,street light,downlight, led display screen,power driver, etc.
Mounting components :LED,capacitors,resistor,IC,shaped components,etc
