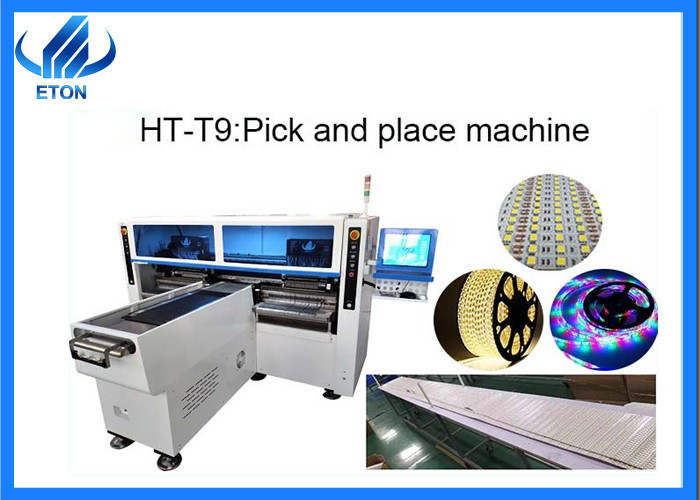

Fast LED Strip Mounting Machine HT-T9 250000 Cph in strip production line
Technical parameter
| Model |
HT-T9 |
| Dimension |
| Length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| PCB Clamping |
Vacuum adsorption, cylinder splint, adjustable track width |
| Mounting Mode |
Group picking and separately placing |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
5 PCS ( Digital camera) |
| Vision alignment, MARK correction |
| Repeat mounting Precision |
±0.02mm (Repeat precision) |
| Mounting Height |
≦5mm |
| Mounting Speed |
200000~250000CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of head |
68 PCS |
| Power |
380AC 50 HZ |
| Power Consumption |
6kw |
| Operating Environment |
23℃±3℃ |
| Conveyor transmission |
Max Length :1000 mm |
| Transmission speed |
>500mm/sec |
| Transmission Direction |
Single(left→ right or right→ left) |
| Transmission Mode |
Online drive |
| Positioning Way |
Optical |
| Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor+ servo motor |
| Feeding way |
Electric feeder with double motor |
Detailed description
Linear magnetic levitation motor
The pick and place machine use linear magnetic levitation motor, the stator itself is a permanent magnet, and the interaction between the moving stator and the magnetic pole causes the mounting head to move back and forth through external electrification.
The service and transport
1.The Service
Before sales
Our sales specialist will analyze and recommend the equipment and production line best for you and Provide exclusive and customized services
Under sales
Specialist sale tracks the equipment production and transport situation in time, ensure that the equipment arrives at customers in good condition, and provide professional technical guidance for equipment assembly, and part of areas provide door-to-door service for overseas engineers
After sales
One-year warranty period, sales specialist to answer questions online 24 hours; regularly visit customers to understand the working status of equipment.
2.The package and transport
In order to ensuring the machine in good condition when arrive the equipment reaches the customer factory, we use the vacuum packaging and wooden box packaging.
Step 1: pack the machine with foam cotton and stretch film to protect the outside of the machine
Step 2: Vacuum packing. Put the desiccant in a vacuum bag to prevent moisture; use straps to secure the machine;
Step 3: professional wooden box packaging.
