Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1950*2250*1650mm | PCB Size: | Max: 600*300mm Min: 100*100mm |
|---|---|---|---|
| PCB Thickness: | 0.5~5mm | Mounting Mode: | Group Picking And Separately Placing、separately Picking And Separately Placing |
| Mounting Precision: | ±0.04mm | Mounting Height: | <15mm (Automatic Changing) |
| Mounting Speed: | 90000 CPH | Components Space: | 0.2mm |
| No.of Feeders Station: | 48 PCS | No.of Head: | 24 PCS |
| Power: | 380AC 50Hz | Power Consumption: | 8KW |
| High Light: | 90000CPH SMT Mounter,Double Arm mounter machine in smt,Double Module mounter machine in smt |
||

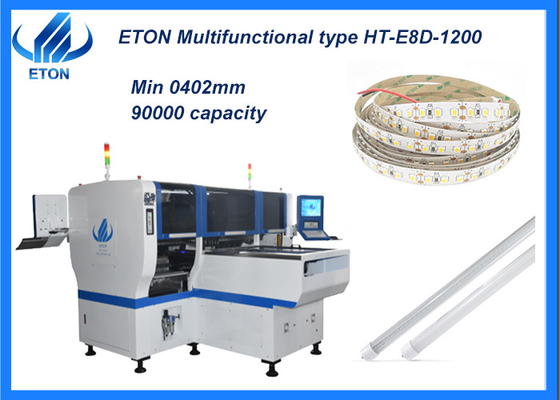

Fully Automatic Multifunctional Dual Module Magnetic Linear Motor Making Machine 90000CPH LED Pick And Place Machine
Product description

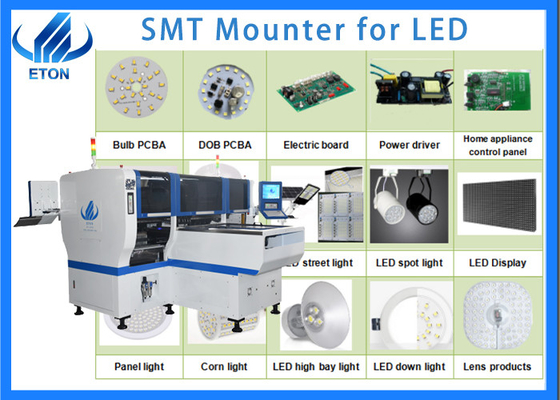

HT-E8D SMT pick and place machine is for led, lens,capacitors, resistors, IC, Shaped components, etc. Apply to Led lamp manufacturer, PCB production line etc .

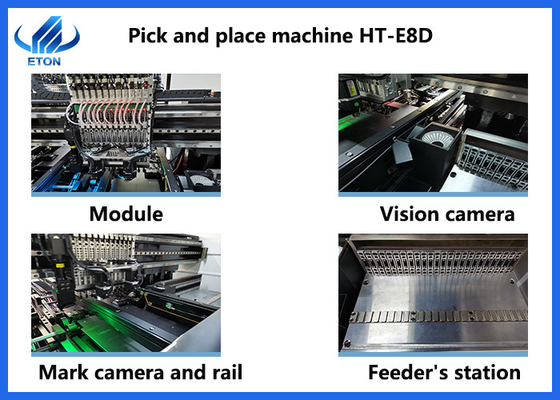

HT-E8D is a dual module dual system multi-functional SMT pick and place machine. At the same time the production of two different products. Vision for the flight identification, mark correction. And it’s identified the correct position by camera. So it’s high precision and good stability.
Specific technical parameter
| Length*Width*Height | 3150mm*22500mm *1650mm | |
| Total Weight | 2000kg | |
| PCB Length Width | Max:1200*300mm Min:100*100mm | |
| Mounting Precision | ±0.02mm chip | |
| Mounting Speed | 90000 CPH(optimum) | |
| Components Speed | 0.2mm | |
| Power | 380AC 50HZ | |
| Power Consumption | 8kw | |
| No. of feeders | 4*20PCS | |
| Components | led, lens,capacitors, resistors, IC, Shaped components, etc. | |
Our advantage
1. Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.
2. ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
3. The produces have exported more than 20 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
4. ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
5. ETON also keep “no worries” after-sales service, and the products are supported to personal customization, specialist sale always track the production and transportation of equipment.
Certificates
Nowadays, ETON has obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights.
RFQ
Is it good machine ?
A: Yes, E8D is very good and highspeed, the main part is using import famouse brand .
How can I get the price?
A: Sent us inquiry now, we will give you best price.
Can E8D make tube?
A: Yes, E8D suitable for mounting led tube.
