Double mounter Vision alignment flight identification SMT 24 heads LED lighting machine
Product description

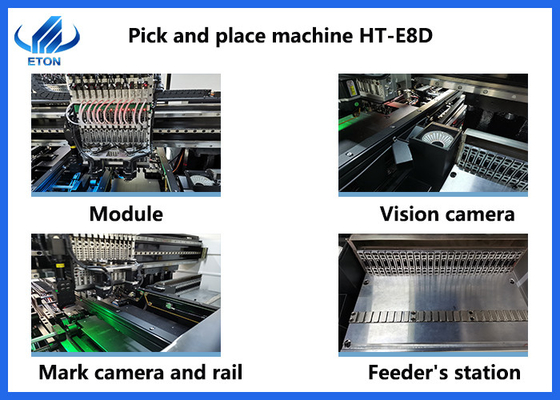

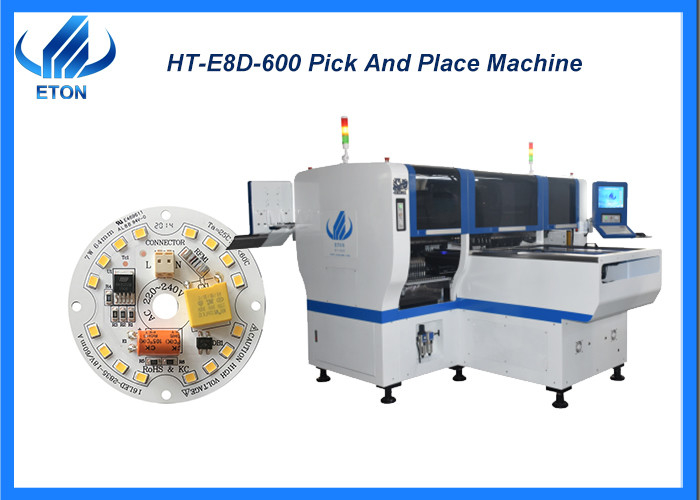

E8D-600 multifunctional pick and place machine taking the mounting mode of group picking and separately placing, separately picking and separately placing, with 24 PCS of head capacity reaches 90000 CPH.
Features:
- Dual system, dual module multifunctional mounter to produce two different products at the same time.
- Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
- Component: Min. Size 0402, Max. Height 15mm.
- Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
Exclusive Patented Technology:
- Electronic feeder feeding system.
- Vision alignment flight identification, Mark correction.
- Non- stop material re-loading function.
- Auto-optimization after coordinates generated, etc.
Machine parameter
| Model |
HT-E8D-600 |
| Dimension |
1950mm*2250mm*1650mm |
| Total weight |
2200kg |
| PCB length width |
Max:600*300mm
Min:100*100mm
|
| PCB thickness |
0.5-5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and separately placing, Separately picking and separately placing |
| Mounting precision |
±0.04mm |
| Mounting speed |
90000CPH |
| No. of feeders station |
48PCS single module |
| No. of head |
24 PCS single module |
SMT Line solution
The equipment required for the semi-automatic production line includes:
- Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
- Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
- Reflow oven: melting the solder paste to make it adhere to the mounting components;
- Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Shipping and Delivery
As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
FAQ
Q.How can I make inspection when something wrong with the machine?
A. Well, the inspection is taken by our professional engineer to check and modulate the machine, if you counter any problem of our machine please contact us, and we will arrange our engineer to solve it.
Q. How can I look around your industrial park if I am on aboard?
A. If you have Chinese agent we can make an appointment to show you the environment, of course we also can make video call to show you the industrial park, or we will do some video to you if you need.
