Max 600*300mm PCB LED DOB Making SMT Machine Auto-Optimization

Max 600*300mm PCB LED DOB Making SMT Machine Auto-Optimization
Max 600*300mm PCB LED DOB Making SMT Machine Auto-Optimization Max 600*300mm PCB LED DOB Making SMT Machine Auto-Optimization Max 600*300mm PCB LED DOB Making SMT Machine Auto-Optimization

Large Image :  Max 600*300mm PCB LED DOB Making SMT Machine Auto-Optimization

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: HT-E8D-600
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Application: LED Lights, Electrical Products, Household Appliance Power Supply: 380AC 50HZ
Warranty: 1 Year Condition: New
Product Name: Automatic SMT Pick And Place Machine Weight: 2200kg
Mounting Speed: 90000 CPH Dimension: 1950*2250*1650mm
Pcb Thickness: 0.5-5 Mm
Highlight:

DOB Making SMT Machine

,

Max 600*300mm PCB SMT Machine

,

Auto Optimization SMT Mounter Machine

Auto-optimization  Max 600*300mm PCB LED DOB making SMT machine

Product description

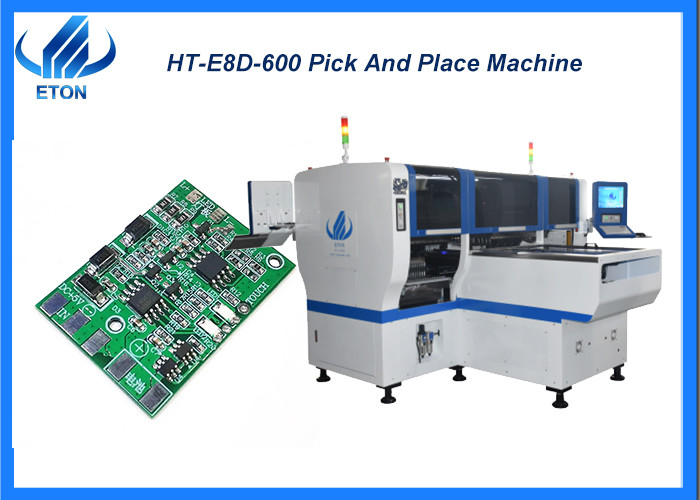

E8D-600 multifunctional pick and place machine taking the mounting mode of group picking and separately placing, separately picking and separately placing, with 24 PCS of head capacity reaches 90000 CPH.

Features:

  • Dual system, dual module multifunctional mounter to produce two different products at the same time.
  • Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
  • Component: Min. Size 0402, Max. Height 15mm.
  • Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

Exclusive Patented Technology:

  • Electronic feeder feeding system.
  • Vision alignment flight identification, Mark correction.
  • Non- stop material re-loading function.
  • Auto-optimization after coordinates generated, etc.



Machine parameter

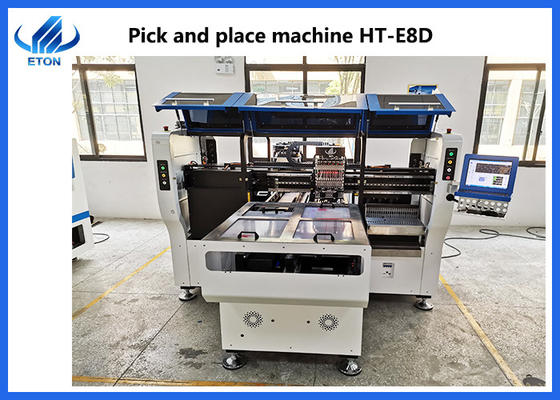

Model HT-E8D-600
Dimension 1950mm*2250mm*1650mm
Total weight 2200kg
PCB length width

Max:600*300mm

Min:100*100mm
PCB thickness 0.5-5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group picking and separately placing, Separately picking and separately placing
Mounting precision ±0.04mm
Mounting speed 90000CPH
No. of feeders station 48PCS single module
No. of head 24 PCS single module

SMT Line solution
The SMT production line has two schemes: semi-automatic and fully automatic line. If you are just starting to do it, I suggest you do a semi-automatic production line, which can effectively save your cost.
Max 600*300mm PCB LED DOB Making SMT Machine Auto-Optimization 0
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Max 600*300mm PCB LED DOB Making SMT Machine Auto-Optimization 1
Our Exhibitions
Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 30 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.
Max 600*300mm PCB LED DOB Making SMT Machine Auto-Optimization 2
FAQ
Q. How was your services?
A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.

Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
