2200kg SMT Placement Machine Electronic Feeder Dual Arm for Driver Mounting

2200kg SMT Placement Machine Electronic Feeder Dual Arm for Driver Mounting
2200kg SMT Placement Machine Electronic Feeder Dual Arm for Driver Mounting 2200kg SMT Placement Machine Electronic Feeder Dual Arm for Driver Mounting 2200kg SMT Placement Machine Electronic Feeder Dual Arm for Driver Mounting

Large Image :  2200kg SMT Placement Machine Electronic Feeder Dual Arm for Driver Mounting

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: HT-E8D-600
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Condition: New Product Name: Automatic SMT Pick And Place Machine
Warranty: 1 Year Applicable Components: 0402
Dimension: 1950*2250*1650mm Feeders: 48PCS
Pcb Thickness: 0.5-5mm Mounting Speed: 90000 CPH
Highlight:

Driver Mounting SMT Machine

,

SMT Placement Machine For Driver

,

2200 kg SMT Placement Machine

Driver mounting Electronic feeder dual arm 2200kg SMT placement machine

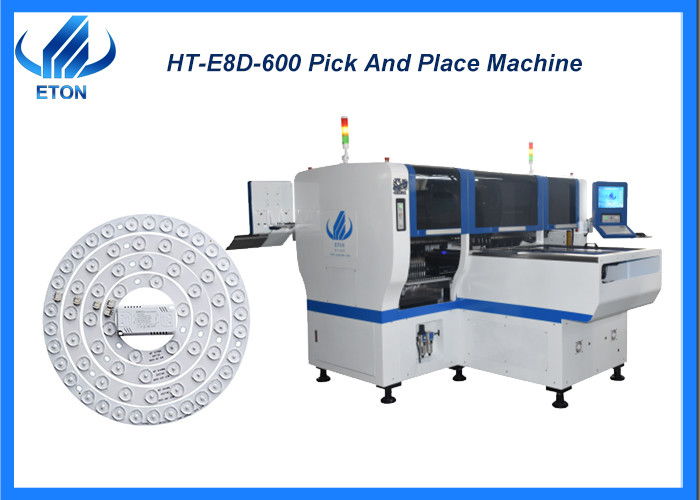

Product description
E8D-600 multifunctional pick and place machine taking the mounting mode of group picking and separately placing, separately picking and separately placing, with 24 PCS of head capacity reaches 90000 CPH.

Features:

  • Dual system, dual module multifunctional mounter to produce two different products at the same time.
  • Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
  • Component: Min. Size 0402, Max. Height 15mm.
  • Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

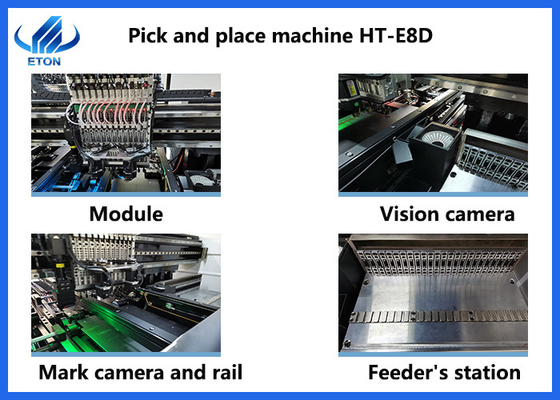

Exclusive Patented Technology:

  • Electronic feeder feeding system.
  • Vision alignment flight identification, Mark correction.
  • Non- stop material re-loading function.
  • Auto-optimization after coordinates generated, etc.



Machine parameter

Model HT-E8D-600
Dimension 1950mm*2250mm*1650mm
Total weight 2200kg
PCB length width

Max:600*300mm

Min:100*100mm
PCB thickness 0.5-5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group picking and separately placing, Separately picking and separately placing
Mounting precision ±0.04mm
Mounting speed 90000CPH
No. of feeders station 48PCS single module
No. of head 24 PCS single module

Machine application

2200kg SMT Placement Machine Electronic Feeder Dual Arm for Driver Mounting 0

Packages

As for the package of the machine, we put it in film packing and foam cotton, to prevent the dust and water of protecting the machine and keep dry of the machine during transportation, and equip with wooden boxes to transport to the specified port.

2200kg SMT Placement Machine Electronic Feeder Dual Arm for Driver Mounting 1

Service

  • Professional solutions: Provide professional SMT Full line solutions
  • Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
  • Free Installation: On-site free installation to ensure smooth production.
  • Free Technical Training: Professional training of operating and maintenance.
  • Free Technical Support: 7 * 24 technical online support.
  • Free Software Upgrade: Offer free software upgrade whole lifetime

2200kg SMT Placement Machine Electronic Feeder Dual Arm for Driver Mounting 2

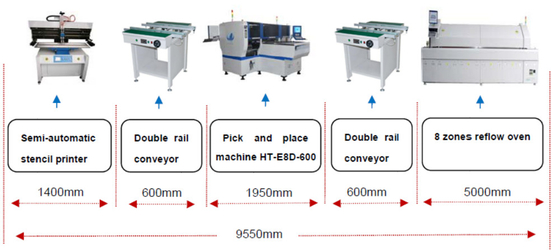

Related machine

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

2200kg SMT Placement Machine Electronic Feeder Dual Arm for Driver Mounting 3

FAQ

Q. How long is the machine maintenance period, whether it is free?

A. The maintenance period of our machine is 1 year and its free for our clients, after the maintenance period we will arrange our engineers to check and test the machine one or two times a year freely.



Q.What is your merits of the machine to others production?

A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 52000 square meters industrial park to serve the production, assembly, and commissioning of our machines.
