Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Stencil Printer Machine |
|---|---|---|---|
| Application: | For SMT Machine | Condition: | 100% Original,Brand-new |
| Type: | Automatic | Usage: | Circuit Board Assembly,SMT Mounting Machine |
| Squeegee Speed: | 6-300mm/sec | Transport Speed: | MAX 1200mm/s Programmable |

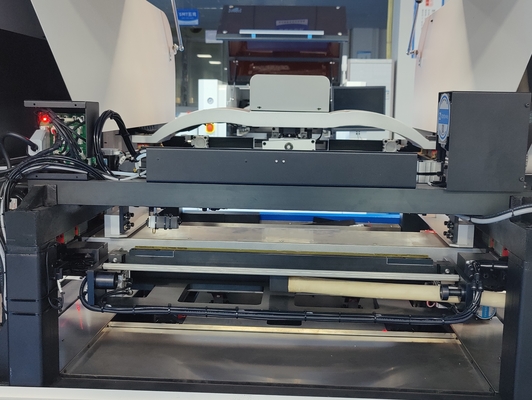

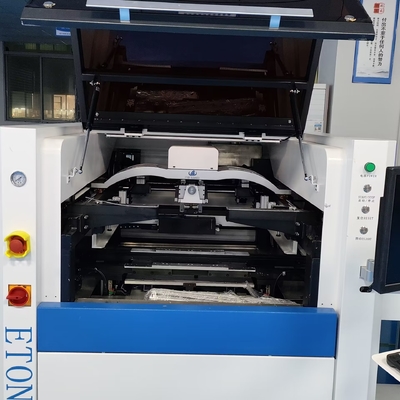

ET-5235 Automatic Stencil Printer: Max 737mm Screen Frames, 25-40mm Thickness, PC Control
Parameter
| Model | ET-5235 | |
| Screen Frames | Max Size | 737mm |
| Min Size | 470mm | |
| Thickness | 25-40mm | |
| PCB Size | MAX:520*350mm MIN:50*50mm | |
| Transport Height | 900±20mm | |
| Transport Direction | Left-Right; Right-Left; Left-Left;Right-Right | |
| Transport Speed | MAX 1200mm/s Programmable | |
| Print Head | Two independent direct-connect motor-driver printheads | |
| Squeegee Speed | 6-300mm/sec | |
| Cleaning System | Dry,Wet,Vacuum(Programmable) | |
| Printing Accuracy | ±0.025mm | |
| Cycle Time | ≤9s (Exclude Printing&Cleaning ) | |
| Power Input | AC:220±10%, 50/60HZ 1Φ 3KW | |
| Control Method | PC Control | |
| Dimension | 1240(L)*1450(W)*1650(H) | |
| Weight | Approx:700kg | |
| PCB Transfer Overhead Height | 10mm | |
Company Introduction
We had building a long-term partnership with some strong factories!
We specialize in this field for 20 years.
We have our own professional designers.
We have 50,000 square meters of industrial park.
ETON Machine
(1)Suitable machines: various machines are apply for various products, DOB, LED bulbs, lens, streetlight, ceiling light, spotlight, flexible strip, electric board, power driver, household application, display min component 0201, highest capacity reach 500000CPH;
(2)Complete service: local engineers and office provide freely training and installation,software freely upgrade whole lifetime;
(3)Market and export: Help 90% of domestic LED factories to build production lines; Foreign exports to more than 30 countries and regions, such as Turkey, India, Egypt, Brazil, Russia, Pakistan, South Korea, etc
Exhibition
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
Packaging
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
FAQ
Q: What is the payment method?
A: We support T/T payment.
Q: When is the delivery time?
A: Delivery within 30 days after payment.
Q: What is the shelf life?
A: 1 year warranty.
Q: What are the main LED products our machines for?
A: There are different machines in our company and different machines apply to different LED lights. The main products we can apply:bulb tube strip lamp panel. Down light,streetlight,ceiling light.wall washer light and so on.
Q: Do our machines only for LED lights?
A: No,our machines apply to not only LED light but also other products. Such as power driver, electric board, display, etc.
