Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Stencil Printer Machine |
|---|---|---|---|
| Application: | For SMT Machine | Condition: | 100% Original,Brand-new |
| Type: | Automatic | Usage: | Circuit Board Assembly,SMT Mounting Machine |
| Squeegee Speed: | 6-300mm/sec | Transport Speed: | MAX 1200mm/s Programmable |

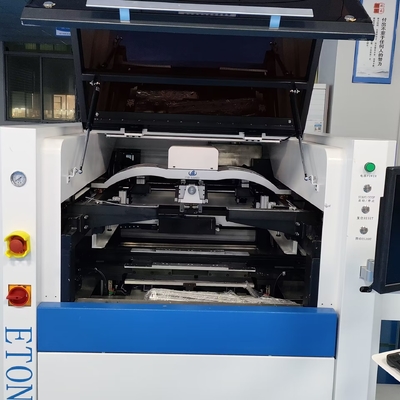

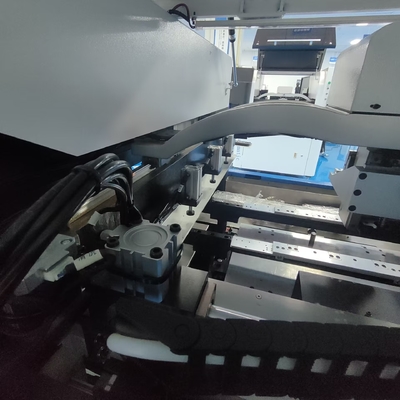

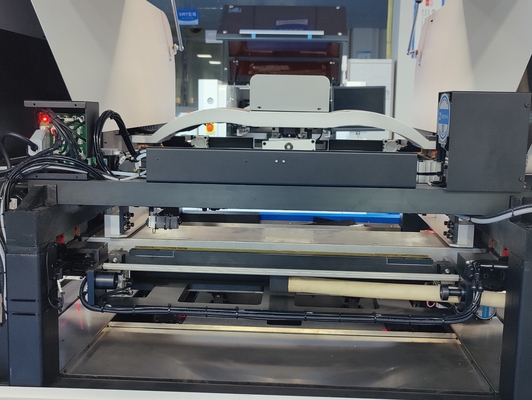

ETON Machine ET-5235 Stencil Printer for led and electric board making machine in SMT
Parameter
| Model | ET-5235 | |
| Screen Frames | Max Size | 737mm |
| Min Size | 470mm | |
| Thickness | 25-40mm | |
| PCB Size | MAX:520*350mm MIN:50*50mm | |
| Transport Height | 900±20mm | |
| Transport Direction | Left-Right; Right-Left; Left-Left;Right-Right | |
| Transport Speed | MAX 1200mm/s Programmable | |
| Print Head | Two independent direct-connect motor-driver printheads | |
| Squeegee Speed | 6-300mm/sec | |
| Cleaning System | Dry,Wet,Vacuum(Programmable) | |
| Printing Accuracy | ±0.025mm | |
| Cycle Time | ≤9s (Exclude Printing&Cleaning ) | |
| Power Input | AC:220±10%, 50/60HZ 1Φ 3KW | |
| Control Method | PC Control | |
| Dimension | 1240(L)*1450(W)*1650(H) | |
| Weight | Approx:700kg | |
| PCB Transfer Overhead Height | 10mm | |
Our advantages
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
Our after-sales service of Pick and Place Machine
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
Exhibition
such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran and so on.And
we also participate in many abroad and domestic exhibition .
Abroad: Thailand Exhibition, Turkey exhibition, India Mumbai exhibition, India Delhi exhibition,
Pakistan exhibition, Egypt exhibition and others.
Domestic :Guangzhou Guangya Exhibition, Shanghai Munich exhibition and Chongqing led exhibition
and so on.
Packaging
Filming packing:Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity.
vacuum packing:Advantages of moisture proof,dust proof and so on.
wooden packing: It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions.
FAQ
Q1: What is the optimal capacity of your products?
A:The actual product of the mounter in this industry is conservatively estimated to be 60% of the optimal production capacity, but it all depends on the product you want to do, PCB design, component type, component quantity, etc
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to your factory to train your staff for you.
Q: Does your company have any other machines?
A: Yes, we are a professional manufacturer of SMT placement machines. In addition to on-board loading machines, our company also has semi-automatic printing machines, positioning machines, reflow soldering, connecting stations, conveyor belts and other SMT production line.
