Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1950*2250*1650mm | PCB Size: | Max: 600*300mm Min: 100*100mm |
|---|---|---|---|
| PCB Thickness: | 0.5~5mm | Mounting Mode: | Group Picking And Separately Placing、separately Picking And Separately Placing |
| Mounting Precision: | ±0.04mm | Mounting Height: | <15mm (Automatic Changing) |
| Mounting Speed: | 90000 CPH | Components Space: | 0.2mm |
| No.of Feeders Station: | 48 PCS | No.of Head: | 24 PCS |
| Power: | 380AC 50Hz | Power Consumption: | 8KW |
| High Light: | LED Strip Light Making Machine 8kw,Bulb Tube LED Strip Making Machine,CE LED Strip Light Manufacturing Machine |
||
Fully Automatic Multifunctional Dual Module Magnetic Linear Motor Making Machine 90000CPH Pick And Place Machine
Production Introduction of Pick and Place Machine HT-E8D-600
1. Double module magnetic linear motor multifunctional pick and place machine.
2. Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
3. Component: Min. Size 0402 Max. Height 15mm.
4. Application: Power driver,electric board,lens,DOB bulb,linear bulb,household appliance etc.
Exclusive patent technology
1. Electric feeder feeding system.
2. Vision alignment flight identification, Mark correction.
3. Non-stop material re-loading function
4. Auto-optimization after coordinates generated, etc.
HT-E8D-600 of Technical Parameter
| Dimension | 1950*2250*1650mm |
| PCB Size | Max: 600*300mm Min: 100*100mm |
| PCB Thickness | 0.5~5mm |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting height | <15mm (Automatic changing) |
| Mounting speed | 90000 CPH |
| Components | LED chip,resistors,capacitors,IC,shaped components etc. |
| Components space | 0.2mm |
| No.of feeders station | 48 PCS |
| No.of head | 24 PCS |
| Power | 380AC 50Hz |
| Power consumption | 8 KW |
| X,Y,Z Axis drive way | High-end magnetic linear motor+servo motor |

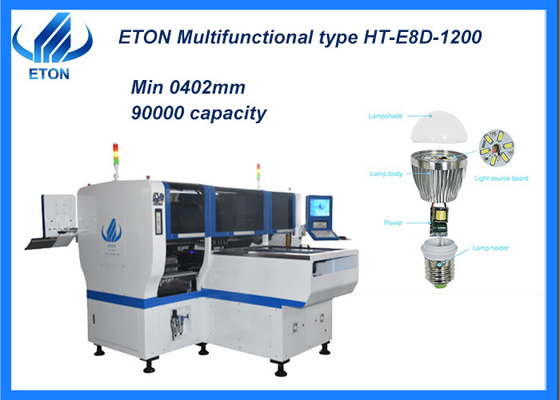

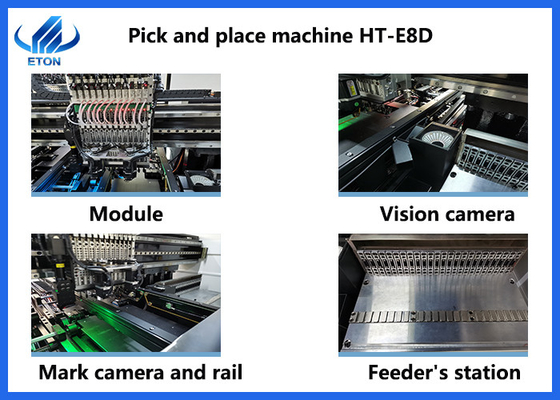

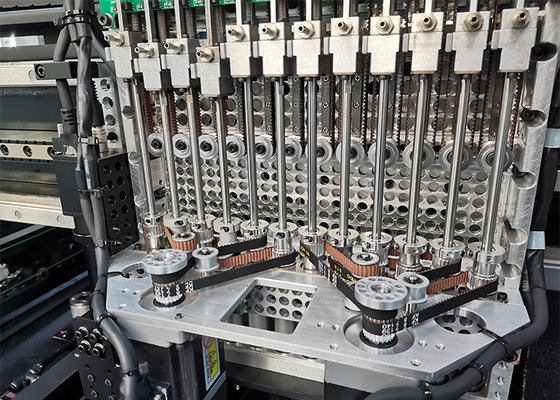

HT-E8D-600 Picture

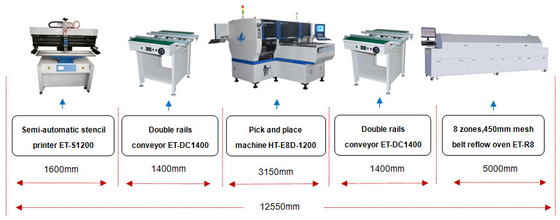

Application of HT-E8S
Apply to tube,driver,bulb,strip,lamp,panel,ceiling light,down light,screen,street light,etc.
Apply to mounting LED,capacitors,resistors,IC,shaped components etc.
Company Introduction
1. 10 years development history
2. Independent R&D, Exclusive Patented Technology
3. 80% large and listed LED factory are our client
4. Top 1 in high-speed pick and place machine in China
Shenzhen ETON Automation Equipment Co.,Ltd. Was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
Certification
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, we got 9 invention patents, 112 practical patents,12 software patents and have rich experience(more than 8 years) in LED light production line program.
Our after-sales service of Pick and Place Machine
We will send our engineer to your factory to install machine and training freely.
We have service office in India,and have Indian engineer in Delhi and Mumbai.
Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.
Package and Delivery of Pick and Place Machine
Package advantages
Filming packing:Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity.
vacuum packing:Advantages of moisture proof,dust proof and so on.
wooden packing: It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions.
FAQ of Pick and Place Machine
Q:If machine have any problem after I receive it, how can I do ?
A:We will send Free parts send to you in machine warranty period,and our engineers will visit to your factory help you to solve your machine’s problem.
Q:Why choose us?
A: We provide professional in SMT line for 11 years,with strong production and strong capacity and R&D team,Has provided a lot of clients with modern SMT production line solutions.
Q: What about the shipping methods?
A: A variety of transportation methods for you to choose. By sea, air and road.
Q: Do you have service office in India?
A: Yes, we have service office in Deli and Mumbai,and we have three India local engineers can support quickly.
Q: What is the mounting mode of your SMT machine?
A: Our multifunctional pick and place machine can group picking and separately placing or separately picking and separately placing, high-speed pick and place machine can group picking and group placing.
