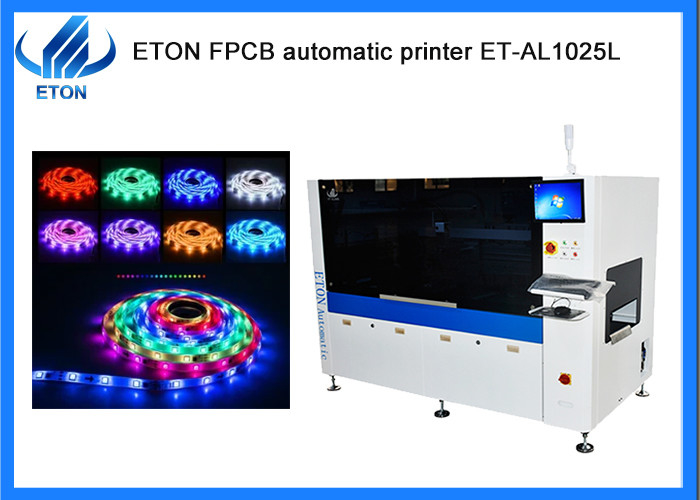

SMT high printing efficiency flexible strip automatic SMT machine
Machine configuration
● Programmable suspension printing head;
*Two sets of stepping motor drive, the pressure of front and rear scraper can be adjusted separately to ensure the inconsistency of front and rear printing caused by fatigue deformation of scraper material;
*Effectively control the stroke, improve the printing efficiency, and prevent the leakage of solder paste;
● Standard stainless steel scraper, unique design, improve the service life of the blade;
● Downward vision alignment system;
● CNC guide rail adjustment;
● Industrial controlled computer,Windows XP interface operating system;
● Built-in software diagnostic system;
● SMEMA interface.
Technical parameter
| Screen Frames |
Min Size |
850mm |
| Max Size |
550mm |
| Thickness |
25~45mm |
| FPCB Min Size |
50mm |
| FPCB Max Size |
260mm |
| FPCB Thickness |
0.5~5mm |
| FPCB Warpage |
Max. FPCB diagonal 1％ |
| Transport Height |
900±40mm |
| Transport Direction |
Left-Right |
| Transport Speed |
Max 1000mm/S Programmable (Adjustable) |
| Board Location |
Support System |
Platform jacking tension |
| Clamping System |
Edge clamp fixed |
| Print head |
Two independent motorized print heads |
| Squeegee Speed |
6~300mm/sec |
| Squeegee Pressure |
0~10Kg/cm2 |
| Squeegee Angle |
55°(Standard) |
| Squeegee Type |
Stainless steel(Standard), plastic |
| Stencil Separation Speed |
0.1~20mm/sec Programmable |
| Cleaning System |
Manual cleaning |
| Table Adjustment ranges |
X:±5mm;Y:±5mm;θ:±2° |
| Machine |
| Repeat Position Accuracy |
±0.01mm |
| Printing Accuracy |
±0.025mm |
| Cycle Time |
≤9s (Exclude Printing & Cleaning) |
| Air Required |
4.5~6Kg/cm2 |
| Power Input |
AC:220±10%,50/60HZ 1Φ 1.5KW |
| Control Method |
PC Control |
| Machine Dimensions |
1754(L)X1249(W)X1600(H)mm |
| Machine Weight |
Approx:600Kg |
| FPCB transport over plate height |
20mm |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Service
- Professional solutions: Provide professional SMT Full line solutions
- Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
- Free Installation: On-site free installation to ensure smooth production.
- Free Technical Training: Professional training of operating and maintenance.
- Free Technical Support: 7 * 24 technical online support.
- Free Software Upgrade: Offer free software upgrade whole lifetime
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
