Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Application: | SMT Production Line,for SMT Machine |
|---|---|---|---|
| Condition: | 100% Original,Brand-new | Product Name: | FPCB Stencil Printer Machine |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,LED | Apply Length: | Any Length Of Strip Light |
| Local Service: | India, Egypt, Vietnam | Squeegee Speed: | 6~300mm/sec |
| High Light: | Roll Strip Solder Paste Stencil Printer,Roll Strip Stencil Printer Machine,Stencil Printer Machine For 260mm FPCB |
||

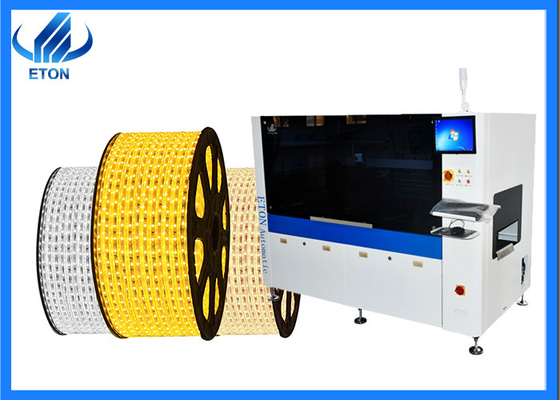

roll to roll solder paste machine for 260mm FPCB width
Technical parameter
| Screen Frames | Min Size | 850mm |
| Max Size | 550mm | |
| Thickness | 25~45mm | |
| FPCB Min Size | 50mm | |
| FPCB Max Size | 260mm | |
| FPCB Thickness | 0.5~5mm | |
| FPCB Warpage | Max. FPCB diagonal 1％ | |
| Transport Height | 900±40mm | |
| Transport Direction | Left-Right | |
| Transport Speed | Max 1000mm/S Programmable (Adjustable) | |
| Board Location | Support System | Platform jacking tension |
| Clamping System | Edge clamp fixed | |
| Print head | Two independent motorized print heads | |
| Squeegee Speed | 6~300mm/sec | |
| Squeegee Pressure | 0~10Kg/cm2 | |
| Squeegee Angle | 55°(Standard) | |
| Squeegee Type | Stainless steel(Standard), plastic | |
| Stencil Separation Speed | 0.1~20mm/sec Programmable | |
| Cleaning System | Manual cleaning | |
| Table Adjustment ranges | X:±5mm;Y:±5mm;θ:±2° | |
| Machine | ||
| Repeat Position Accuracy | ±0.01mm | |
| Printing Accuracy | ±0.025mm | |
| Cycle Time | ≤9s (Exclude Printing & Cleaning) | |
| Air Required | 4.5~6Kg/cm2 | |
| Power Input | AC:220±10%,50/60HZ 1Φ 1.5KW | |
| Control Method | PC Control | |
| Machine Dimensions | 1754(L)X1249(W)X1600(H)mm | |
| Machine Weight | Approx:600Kg | |
| FPCB transport over plate height | 20mm | |
Company advantages
ETON was established in 2011 with over 10 years experiences in high speed pick and place machine. We are the largest high -tech manufacturer in China with strong capability of design,R&D manufacture,sales&services.“High efficiency” “High quality”and “High Stability ” are he core technology of ETON.
Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month
We had building a long-term partnership with some strong factories!
We specialize in this field for 20 years.
We have our own professional designers.
We have 50,000 square meters of industrial park.
Exhibition
ETON actively participates in various exhibitions at home and abroad, and lets our products show up in front of our customers. Our exhibitions include domestic Guangzhou Light Asia Exhibition, Shanghai Munich Exhibition, Chongqing LED exhibition, international exhibitions in India Mumbai exhibition, Pakistan exhibition, Egypt exhibition, Turkey exhibition and so on.
Packaging
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Service
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
FAQ
Q: Does your machines have quality certificate?
A: All of the machines have passed CE,SIRA and CCC certificate and have own patent.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: What is the payment way ?
A:We accept the payment terms: L/C, T/T.
Q: Is it hard to use these machines?
A: No, not hard at all. For our previous clients, at most 2 days is enough to learn to operate the machines.
Q: Can you provide a whole line solution?
A: Yes, we can .We can supply SMT line and LED production line.
