Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Application: | SMT Production Line,for SMT Machine |
|---|---|---|---|
| Condition: | 100% Original,Brand-new | Product Name: | FPCB Stencil Printer Machine |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,LED | Apply Length: | Any Length Of Strip Light |
| Local Service: | India, Egypt, Vietnam | Squeegee Speed: | 6~300mm/sec |
| High Light: | FPCB Stencil Printer Machine,Stencil Printer Machine CCC,SMT Production Line Stencil Printer |
||

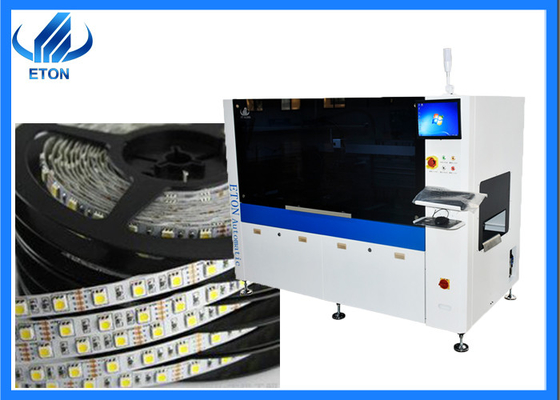

Stencil printer machine 6~300mm/sec for strip lighting
Technical parameter
| Screen Frames | Min Size | 850mm |
| Max Size | 550mm | |
| Thickness | 25~45mm | |
| FPCB Min Size | 50mm | |
| FPCB Max Size | 260mm | |
| FPCB Thickness | 0.5~5mm | |
| FPCB Warpage | Max. FPCB diagonal 1％ | |
| Transport Height | 900±40mm | |
| Transport Direction | Left-Right | |
| Transport Speed | Max 1000mm/S Programmable (Adjustable) | |
| Board Location | Support System | Platform jacking tension |
| Clamping System | Edge clamp fixed | |
| Print head | Two independent motorized print heads | |
| Squeegee Speed | 6~300mm/sec | |
| Squeegee Pressure | 0~10Kg/cm2 | |
| Squeegee Angle | 55°(Standard) | |
| Squeegee Type | Stainless steel(Standard), plastic | |
| Stencil Separation Speed | 0.1~20mm/sec Programmable | |
| Cleaning System | Manual cleaning | |
| Table Adjustment ranges | X:±5mm;Y:±5mm;θ:±2° | |
| Machine | ||
| Repeat Position Accuracy | ±0.01mm | |
| Printing Accuracy | ±0.025mm | |
| Cycle Time | ≤9s (Exclude Printing & Cleaning) | |
| Air Required | 4.5~6Kg/cm2 | |
| Power Input | AC:220±10%,50/60HZ 1Φ 1.5KW | |
| Control Method | PC Control | |
| Machine Dimensions | 1754(L)X1249(W)X1600(H)mm | |
| Machine Weight | Approx:600Kg | |
| FPCB transport over plate height | 20mm | |
Our advantages
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
Market
ETON is a very strong and powerful company. We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
We occurred 90% percent in China LED lighting markets, but also send machines to India, Korea, UK, Russia, Egypt, Turkey, Vietnam,Japan, Australia, Poland, etc more than 30 countries.
Working with ETON is guaranteed, let’s light up your business!
Certificates
Our company has obtained 9 invention patents, 12 software Copyrights and 112 practical patents
Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0
After sales service
ETON as the biggest high speed pick and place machine in China, we are not only famous with high speed, but also famous with the good service . ETON set up office in different cities, like Shenzhen, Shanghai, Zhongshan, India Delhi, Turkey, Egypt, etc.
If you buy our machine, we provide free install and training for you, will sent engineer to your factory to install and training.
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
And we also give professional technology suggestion with our clients.
FAQ
who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market 90% and also more than 30 countries have our customers. There are total about 300-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Multi-functional pick and place machine,High-speed pick and place machine,Glue dispenser machine,Multifunctional Pick And Place Machine,High Speed Pick And Place Machine
4. why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of smt machine with more than 10 years with good quality and reputation.We have rich experience in helping client to start new factory and new line."Professional,high-effective,cost-saving" are our advantages.
5. what services can we provide?
Accepted Delivery Terms:EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese,Japanese
