Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Pick And Place Machine | Visual Camera: | 2 Sets Of Imported Camera |
|---|---|---|---|
| Usage: | LED,special For The LED Strip,SMD LED SMT,LED Tube Large Qty Production,LED Lamp Bulb | Dimension: | 3150*2250*1650mm |
| Total Weight: | 2000kg | Power Consumption: | 8KW |
| Mounting Speed: | 90000CPH | Mounting Height: | <36mm |
| Drive Way: | High-end Magnetic Linear Motor +servo Motor | Warranty: | 12 Months |
| Feeder: | 46,electronic Feeder | ||
| High Light: | Multifunctional LEDs Pick and Place Machine,Double Module LED Mounting Machine,Magnetic Linear Motor LED Mounting Machine |
||
High-Speed Pick and Place Machine for Mounting LED, Capacitors, Resistors, IC and More
Features of Pick and place machine
New double module 1200 mm SMD pick and place machine, high performance universal magnetic linear motor multifunctional placement machine, global initiative, has exclusive patent technology, electronic feeder feeding system,vision alignment flight identification, MARK correction, non-stop material re-loading system, coordinate generated automatically optimize function such as technical support, independent research and development of new science and technology, to provide convenient services.
Tenology Parameter of E8D pick and place machine
| HT-E8D | ||
| PCB | PCB length width | Max:1200*300mm min:100*100mm |
| PCB thickness | 0.5~5mm | |
| PCB clamping | Adjustable pressure pneumatic | |
| O.S. | system | Windows 7 |
| software | R&D independently | |
| display | Touch screen monitor | |
|
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
| Mounting precision | 0.04mm(repeat precision) | |
| Mounting height | <15mm | |
| Mounting speed | 90000CPH | |
| Components space | 0.2mm | |
| Power | 380AC 50HZ | |
| Power consumption | 8KW | |
| Transmission direction | Both direction | |
| Transmission mode | Auto online drive | |
| X,Y,X axis drive way | High-end magnetic linear machine + Servo motor control for X,Y,Z axis | |
| Feeding system | No.of feeders station | Duel mode.totally 48 |
| No.of nozzles | Dual mode.totally24 | |
| Feeding way | Electric feeder with double motor | |

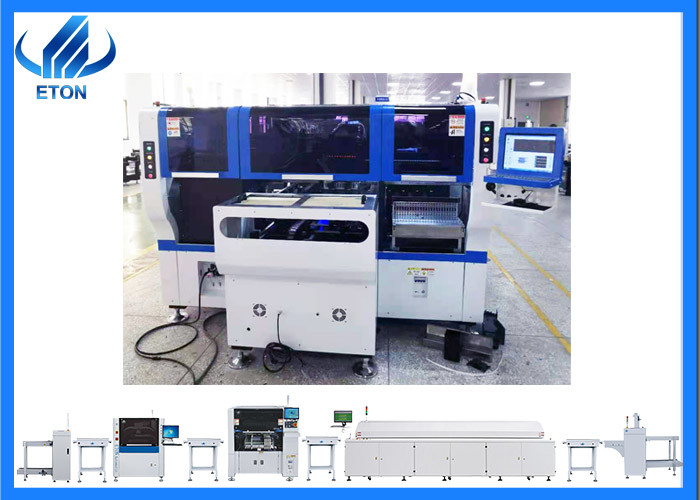

Picture of pick and place machine
SMT production line application
FAQ
1.What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
2.What is the delivery date?
We will deliver the goods after 30 days' deposit.
3.What mode of transport does the goods adopt?
Our mode of transportation is very flexible.Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
4.What is the direction of transmission of machines?
The transmission direction of this machine is single direction.From left to right or from right to left.
5.How about your operating system?
The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface. And It has simple structure and is easy to operate.
