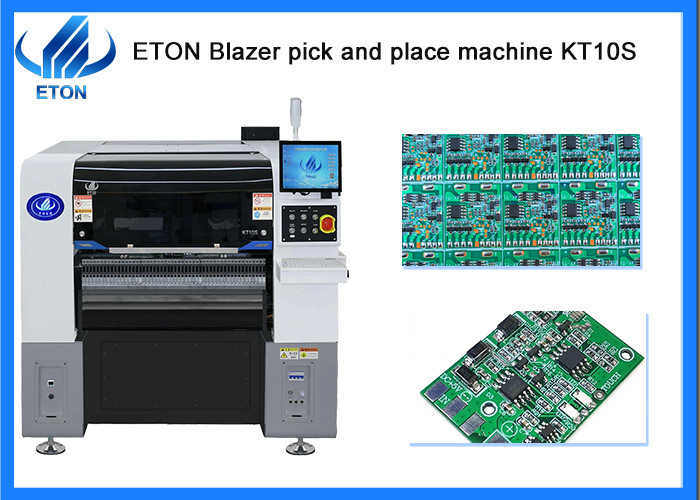

48000 CPH Pick And Place Machine With High End Magnetic Linear Motor

48000 CPH Pick And Place Machine With High End Magnetic Linear Motor
48000 CPH Pick And Place Machine With High End Magnetic Linear Motor 48000 CPH Pick And Place Machine With High End Magnetic Linear Motor 48000 CPH Pick And Place Machine With High End Magnetic Linear Motor

Large Image :  48000 CPH Pick And Place Machine With High End Magnetic Linear Motor

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: KT10S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Applicable Components: LED, Capacitor, Resistors, Shaped Components,etc
Name: SMT Automatic Pick And Place Machine Application: LED Lights, Electrical Products, Household Appliance
Power Supply: 220AC 50HZ 1.5KW Mounting Speed: 40000 CPH
Dimension: 1490*2020*1650mm Feeders: 52 PCS(option 104 PCS), IC Tray Option
Pcb Thickness: 0.5-5 Mm
Highlight:

48000 CPH Pick And Place Machine

,

household appliance SMT Pick Place Machine

,

50HZ SMT Pick Place Machine

High-end magnetic linear motor 48000CPH Pick and place machine



Machine main features

  • Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
  • Y axis double drive gantry, higher speed more stability
  • The placement head adopt independent vacuum detection, improve the placement performance
  • Off-line programming, save time of changeover cycle
  • Equipped coordinate import function, more intelligent

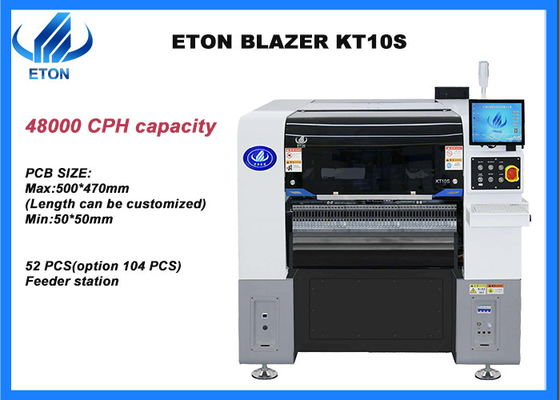

Model KT10S
Dimension 1460*2015*1654mm
Total weight 2080kg
PCB size Max:500*470mm(Length can be customized) Min:50*50mm
PCB thickness 0.5-5mm
Mounting precision CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed 48000 CPH(Optimal speed)
Components LED, capacitor, resistors, shaped components,etc
Power consumption 220AC 50HZ 1.5KW
Feeder station 52 PCS(option 104 PCS), IC tray option
No. of head 10 PCS

Machine main part

48000 CPH Pick And Place Machine With High End Magnetic Linear Motor 0

Our Exhibitions

Eton has participated in many exhibitions of foreign countries , such as India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc and trading with more than 30 countries. Furthermore, we have took part in our domestic large exhibition, like Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED light Exhibition, etc.

48000 CPH Pick And Place Machine With High End Magnetic Linear Motor 1

Our advantage

  • Focusing on SMT high speed pick and place machine more than 20 years
  • The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
  • ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.

48000 CPH Pick And Place Machine With High End Magnetic Linear Motor 2

FAQ

Q. If I need a perfect line of the machine can you supply?

A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.



Q. Can you accept D/P or D/A as the payment term?

A. For our regular payment terms, we usually use T/T.



Q. How can I contact you to buy the goods in an efficient way?

A. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.
