Product Details:
Payment & Shipping Terms:
|
| Name: | SMT Automatic Pick And Place Machine | Application: | LED Lights, Electrical Products, Household Appliance |
|---|---|---|---|
| Power Supply: | 220V,50HZ 1.5KW | Warranty: | 1 Year |
| Condition: | New | Weight: | 2080KG |
| Usage: | SMT Mounting Machine | Dimension: | 1490*2020*1650mm |
| Feeders: | 52 PCS(option 104 PCS), IC Tray Option | Pcb Thickness: | 0.5-5 Mm |
| High Light: | LED Circuit Board SMT Mounting Machine,IC tray option SMT Mounting Machine,LED Lighting chip Mounter machine |
||

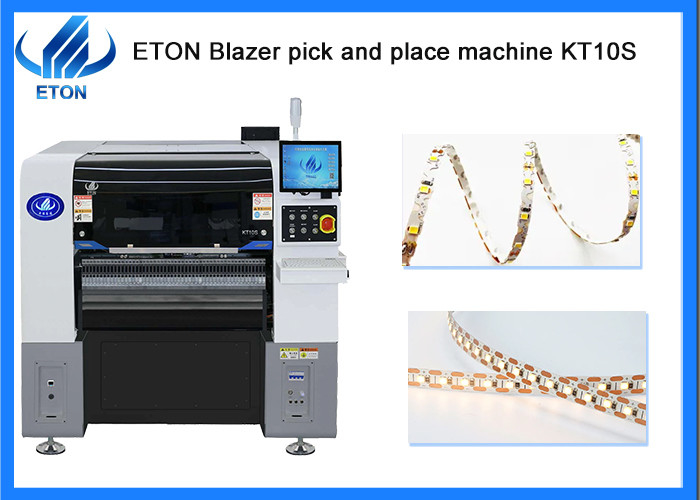

Support off-line programming LED lighting circut board mounting SMT machine
Machine main features
| Model | KT10S |
| Dimension | 1460*2015*1654mm |
| Total weight | 2080kg |
| PCB size | Max:500*470mm(Length can be customized) Min:50*50mm |
| PCB thickness | 0.5-5mm |
| Mounting precision | CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) |
| Mounting speed | 48000 CPH(Optimal speed) |
| Components | LED, capacitor, resistors, shaped components,etc |
| Power consumption | 220AC 50HZ 1.5KW |
| Feeder station | 52 PCS(option 104 PCS), IC tray option |
| No. of head | 10 PCS |

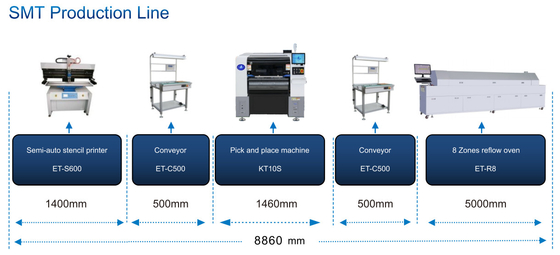

SMT Line solution
The equipment required for the semi-automatic production line includes:
Packages
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
FAQ
Q. How many components can your pick and place machine mount in a PCB board?
A. While this is for our clients needs and the size of the PCB board.
Q. What components is your machine mainly mounted?
A. For the multifunctional pick and place machine that can mount IC, LED chip, resistors, capacitors and shaped components like lens. High speed mounter machine mounting components are LED3014/3020/35285050, resistors, capacitors and rectifiers.
Q. How long is the machine maintenance period, whether it is free?
A. The maintenance period of our machine is 1 year and its free for our clients, after the maintenance period we will arrange our engineers to check and test the machine one or two times a year freely.
