Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine,LED Bulb Mounting Machine,LED Chip Mounter |
|---|---|---|---|
| Weight: | 1700KG | Usage: | LED,SMD LED SMT,LED Tube Large Qty Production,LED Lamp Bulb |
| Applicable Components: | 0402 | Speed: | 45000chips/h |
| Feeder: | 28 | Condition: | New,Brand-new |
| High Light: | 15mm Components LED mounting machine,0402 Components LED mounting machine,Multifunctional led chip mounting machine |
||

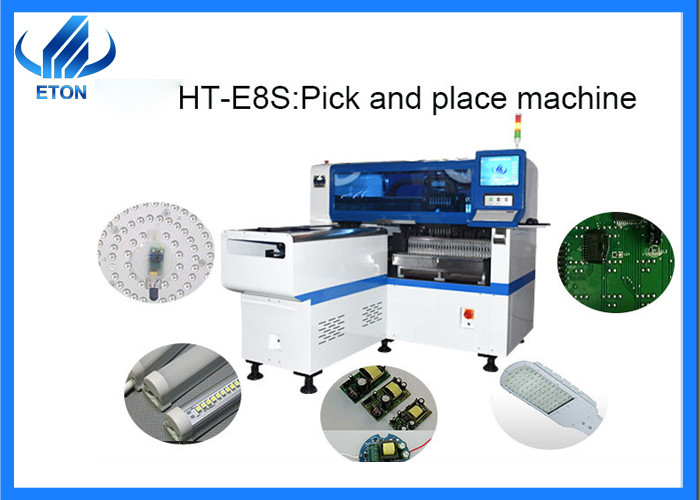

LED pick and place machine 45000CPH apply all kinds of LED lights
Advantage
Dual system, dual module multifunctional mounter. To produce two different products at same time.
The maximum size of e8s-1200 PCB is 1200 * 300mm, which means that e8s can be pasted with a variety of products, such as panel lamp, bulb, street lamp, display screen, Down light, lamp tube, spotlight, etc. Its minimum PCB board is 100 * 100mm, and the components that can be attached include capacitance, resistance, IC, lens, special-shaped components, etc. The minimum size of mounting components is 0402 and the maximum is 15mm. It can also be customized. Compared with E8S, E8D has higher production capacity, and the optimal production capacity per hour can reach 90000 CPH. For RT-1, E8D has higher accuracy.
Technical parameter
| Dimension(L*W*H) | 3150*2250*1650mm |
| PCB Length Width | Max:1200*300mm Min:100*100mm |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| PCB Clamping | Adjustable pressure pneumatic |
| PCB Thickness | 0.5-5mm |
| System | Windows7 |
| Software | R&D independently |
| No. of Camera | 4 sets of imported camera |
| Mounting Speed | 45000CPH |
| Components | LED , capacitors, resistors, IC, shaped components, etc. |
| No. of Feeders Station | 28PCS |
| No. of nozzles | 12PCS |
Packaging
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock
FAQ
1.Is the machines easy to operate?
Yes,of course.Our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
2.How many hours does the machine can operate per day?
Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
3.How about the Training?
We provide the online remote training service, and we will offer you the operating video and manual for user’s repeatedly learning.
4.How about the After-sale Service?
We provide one year warranty, during the warranty period, if any wrong, we will send the accessories free of charge.Free upgrade software: machine software is developed by our company, so we know how to make it more intelligent and we provide life-long free upgrade software for customer who purchase the machine.
