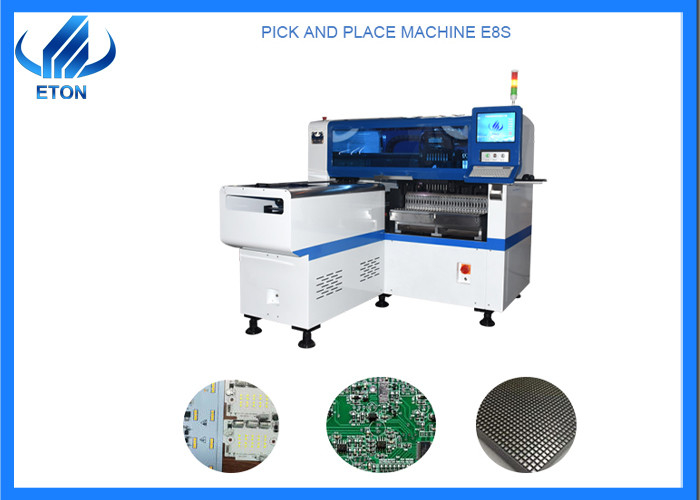

LED pick and place machine 45000CPH apply all kinds of LED lights
Advantage
Dual system, dual module multifunctional mounter. To produce two different products at same time.
The maximum size of e8s-1200 PCB is 1200 * 300mm, which means that e8s can be pasted with a variety of products, such as panel lamp, bulb, street lamp, display screen, Down light, lamp tube, spotlight, etc. Its minimum PCB board is 100 * 100mm, and the components that can be attached include capacitance, resistance, IC, lens, special-shaped components, etc. The minimum size of mounting components is 0402 and the maximum is 15mm. It can also be customized. Compared with E8S, E8D has higher production capacity, and the optimal production capacity per hour can reach 90000 CPH. For RT-1, E8D has higher accuracy.
Exclusive patented technology
1.Electronic feeder feeding system.
2.Vision alignment flight identifications, Mark correction.
3.Non-stop material re-loading function
4.Auto-optimization after coordinates generated, etc.
Technical parameter
| Dimension(L*W*H) |
3150*2250*1650mm |
| PCB Length Width |
Max:1200*300mm Min:100*100mm |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| PCB Clamping |
Adjustable pressure pneumatic |
| PCB Thickness |
0.5-5mm |
| System |
Windows7 |
| Software |
R&D independently |
| No. of Camera |
4 sets of imported camera |
| Mounting Speed |
45000CPH |
| Components |
LED , capacitors, resistors, IC, shaped components, etc. |
| No. of Feeders Station |
28PCS |
| No. of nozzles |
12PCS |
Packing
All machines are packed with vacuum and wooden packing like the one in the pictures. Shipping: --- We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. --- Sea shipping for machine.
Services
1.Maintenance period 1 year
One year warranty, during warranty, any parts that need to be repaired and replaced will be free
2.Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates
3.Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time
4.Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
5.On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt. Turkey that can provide service timely with our engineers.
According to your needs. dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
1.It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
2.Does your machines have quality certificates?
We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 10 years) in LED light production line program.
3.Why should you buy from us not from other suppliers?
We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich experience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages.
