Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine,LED Bulb Mounting Machine,LED Chip Mounter |
|---|---|---|---|
| Weight: | 1700KG | Usage: | LED,SMD LED SMT,LED Tube Large Qty Production,LED Lamp Bulb |
| Applicable Components: | 0402 | Speed: | 45000chips/h |
| Feeder: | 28 | Condition: | New,Brand-new |
| High Light: | 45k CPH LED Pick and Place Machine,Lights LED Pick and Place Machine,All Kinds LED mounting machine |
||

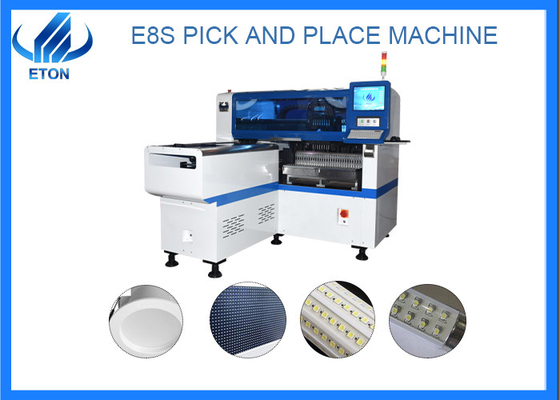

LED pick and place machine 45000CPH apply all kinds of LED lights
PCB conveyor Change single-rail to double-rail
Introduction of machine
Translational conveyor is a kind of parallel transition conveying equipment used between the two ends of an automated production line or between two conveying lines with deviations in the center line. It is mainly composed of frame components, transfer trolley, conveying guide rail, electrical control and other parts.
Translational conveyor is a horizontal connection parallel transfer mechanism especially for mounting or plug-in assembly line, used for PCB board sub-board transfer and transportation. It can meet the transmission needs of PCB boards with a width of 50-300mm and an appropriate length for mounting or short-insertion components. It is suitable for dislocation translation connection between SMT production line or DIP production line or other logistics system multi-line, and automatically transfer the workpiece (PCB or sheet material) to the production mode of the next specific equipment. It can use 2 to 4 patch lines, only 1 set of reflow soldering, or 2 plug-in lines only need one wave soldering.
Technical parameter
| Dimension(L*W*H) | 3150*2250*1650mm |
| PCB Length Width | Max:1200*300mm Min:100*100mm |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| PCB Clamping | Adjustable pressure pneumatic |
| PCB Thickness | 0.5-5mm |
| System | Windows7 |
| Software | R&D independently |
| No. of Camera | 4 sets of imported camera |
| Mounting Speed | 45000CPH |
| Components | LED , capacitors, resistors, IC, shaped components, etc. |
| No. of Feeders Station | 28PCS |
| No. of nozzles | 12PCS |
ETON Advantages
Efficient team: The best suggestions of full SMT lineequipment according to your budget and site.
Competitive price: We are directly manufacture of theETON pick and place machine, so we can give you thebest competitive price with high quality materials.
High quality: We have strictly quality control during allproduction from raw materials to the finished machine.
High efficiency: Allmachines parts are made byourselves, so it" s convenient to control the timeschedule and quality timely.
Exhibition
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
Our clients
Our equipments exported to more than 30 countries & regions.Such as South Korea, Turkey, Egypt, India, Russia, America, Brazil, Tunisia, Poland, Lithuania, South Africa, IranVietnam, Pakistan , Saudi Arabia, Uzbekistan, Nigeria , Germany, etc.
FAQ
Q: If machine have any problem after I receive it , how can I do?
A: During the warranty period, we will replace it for you free, or we can arrange a process engineer to repair it for free
Q:What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
