Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2700*2300*1550mm | PCB Size: | Max: 1200*330mm Min: 100*100mm |
|---|---|---|---|
| PCB Thickness: | 0.5~5mm | Mounting Mode: | Group Picking And Group Placing |
| Mounting Precision: | ±0.02mm (Repeat Precision） | Mounting Height: | ≤5mm |
| Mounting Speed: | 150000-180000 CPH | No.of Feeders Station: | 68 PCS |
| No.of Head: | 34 PCS | Power: | 380AC 50Hz |
| Power Consumption: | 6 KW | X,Y,Z Axis Drive Way: | High-end Magnetic Linear Motor And Servo Motor |
| High Light: | 18W CPH SMT Pick And Place Machine,Tube Light SMT Pick Place Machine,group placing SMT Pick Place Machine |
||
Flexible Strip Light LED Tube Light Making Machine 180000CPH Speed Pick And Place Machine
Description of Pick and Place Machine HT-F7S
1. Dual-arm professional highspeed mounter, 2~4 type of materials capacity reach 18000 CPH
2. Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip light, available for board with any propotion of LED chip and resistor.
3. Two mounting modules, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
4. Calibration automatically, high precision, available for RGB.
5. Exclusive patent technology: Group to take and group to mount.
HT-F7S of Technical Parameter
| Dimension | 2700*2300*1550mm |
| PCB Size |
Max:1200*330mm
Min:100*100mm |
| PCB Thickness | 0.5~5mm |
| Mounting mode | Group picking and group placing |
| Mounting precision | ±0.02mm |
| Mounting height | ≤5mm |
| Mounting speed | 150000-180000 CPH |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors,bridge rectifiers etc. |
| Components space | 0.5mm |
| No.of feeders station | 68 PCS |
| No.of head | 34 PCS |
| Power | 380AC 50Hz |
| Power consumption | 6KW |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |

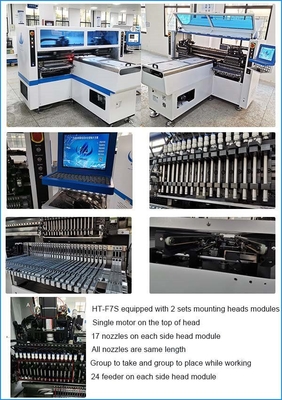

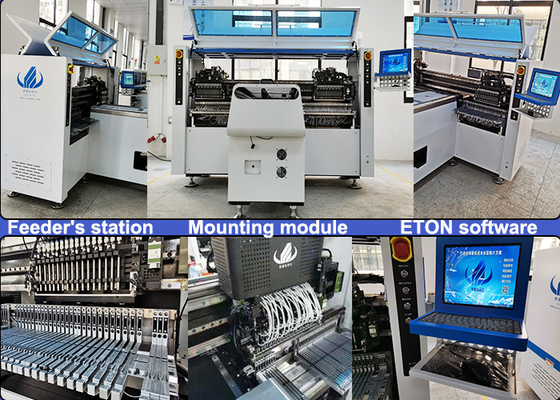

HT-F7S Picture

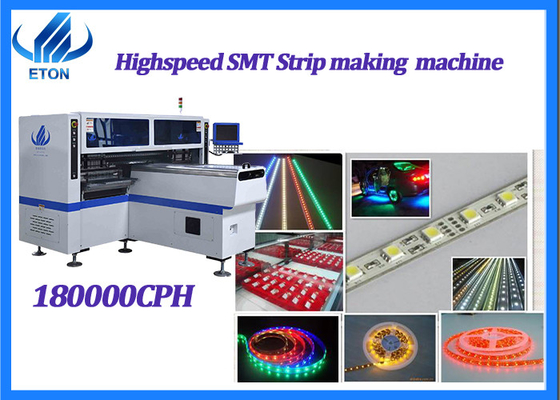

Application of HT-F7S
Apply to the tube light, 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip light etc.

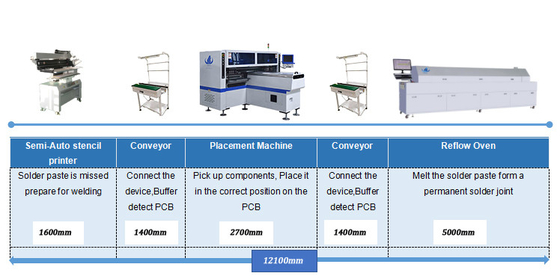

HT-F7S semi-automatic production line
Company Introduction
Shenzhen ETON Automation Equipment Co.,Ltd. Was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
Our Exhibitions:
ETON is a very strong and powerful company. We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
We occurred 85% percent in China LED lighting markets, but also send machines to India, Korea, UK, Russia, Egypt, Turkey, Vietnam, Japan, Australia, Poland, etc more than 20 countries.
Working with ETON is guaranteed, let’s light up your business!
Package and Delivery of Pick and Place Machine
Filming packing:Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity.
vacuum packing:Advantages of moisture proof,dust proof and so on.
wooden packing: It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions.
Our after-sales service of Pick and Place Machine
We provide send Free parts send to you in machine warranty period,and our engineers will visit to your factory help you to solve your machine’s problem.
Engineer site service installation and training.
After learning to maintain and use, you will be satisfied with our service.
Maintenance Period: 1 year. (whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free.
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
FAQ
Q: Is there any quality guarantee?
A: We stick to quality first, client-oriented, Continuous improvement!
Q: What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q: If my order is very urgent, how long you can proceed?
A: We have helped many clients with their urgent demand. If your order is urgent, please contact with our specialist and we will help you to apply special support.
Q: What’s your delivery time?
A: Usually 30 days after deposit, if we have inventory, the time can be brought forward.
Q: What’s the terms of payment? What about the trade term?
A: T/T is OK. You can choose FOB Shenzhen.
