| Dimension: | 2700*2300*1550mm | PCB Size: | Max: 1200*330mm Min: 100*100mm |
|---|---|---|---|
| PCB Thickness: | 0.5~5mm | Mounting Mode: | Group To Take And Group To Mount |
| Mounting Precision: | ±0.02mm (Repeat Precision） | Mounting Height: | Standard:≤5mm |
| Mounting Speed: | 200000~250000 CPH | No.of Feeders Station: | 68 PCS |
| No.of Head: | 68 PCS | Power: | 380AC 50Hz |
| Power Consumption: | 6 KW | X,Y,Z Axis Drive Way: | High-end Magnetic Linear Motor And Servo Motor |
| High Light: | 25 w CPH LED Pick And Place Machine,Tube LED Pick And Place Machine,Flexible LED Pick And Place Machine |
||
High Stability High Speed Led For Flexible Strip And Tube Light 20w~25w CPH Pick And Place Machine

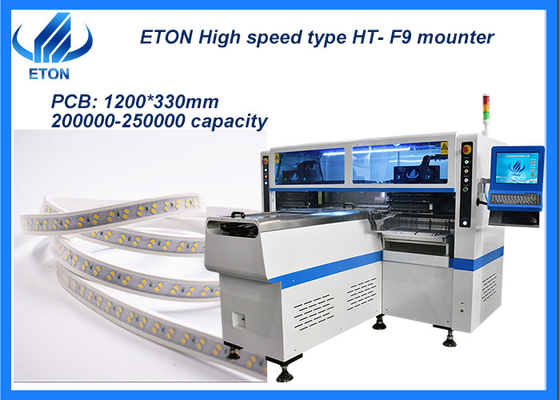

Production Introduction of HT-F9 Pick and Place Machine
Dual arm magnetic linear LED high-speed pick and place machine, Producing 4 types materials at the same time, capacity reach 250000 CPH.
68 feeder stations and 68 nozzles.
Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip.
Producing with 4 types materials at the same time with high capacity.
Available for board with any proportion of LED chip and resistor.
Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group to take and group to mount.
HT-F9 of Technical Parameter
| Dimension | 2700*2300*1550mm |
| PCB length width |
Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5~5mm |
| Mounting mode | Group to take and group to mount |
| Mounting precision | ±0.02mm |
| Mounting height | Standard:≤5mm |
| Mounting speed | 200000~250000 CPH |
| Components |
LED 3014/3020/3528/5050 and resistors, capacitors,bridge rectifiers |
| Components space | 0.5mm |
| No.of feeders station | 68 PCS |
| No.of head | 68 PCS |
| Power | AC 380V 50Hz |
| Power consumption | 6 KW |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |
HT-F9 Picture
The application of HT-F9 Pick and Place Machine

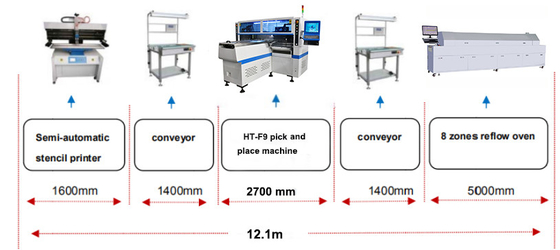

HT-F9 semi-automatic production line
