Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
| Condition: | New,100% Original,Brand-new | Mounting Speed: | 45000 CPH |
| Type: | Automatic | Usage: | Circuit Board Assembly,SMT Mounting Machine,LED |
| High Light: | LED Pick and Place Machine 45000CPH,multifunctional led pick and place machine,panel led pick and place machine |
||

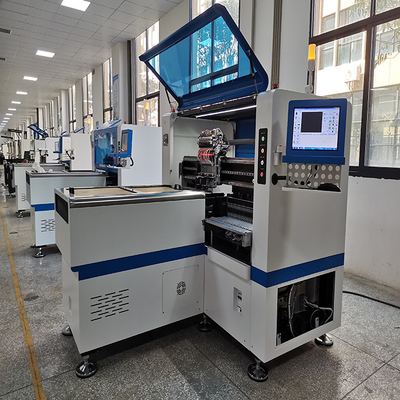

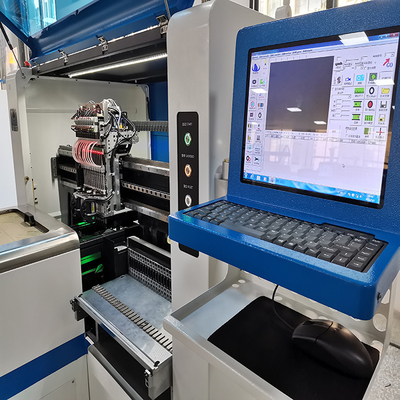

E8S-1200 LED Pick and Place Machine: 45000CPH, Dual System, Dual Module, 4 Cameras
Advantage
Dual system, dual module multifunctional mounter. To produce two different products at same time.
The maximum size of e8s-1200 PCB is 1200 * 300mm, which means that e8s can be pasted with a variety of products, such as panel lamp, bulb, street lamp, display screen, Down light, lamp tube, spotlight, etc. Its minimum PCB board is 100 * 100mm, and the components that can be attached include capacitance, resistance, IC, lens, special-shaped components, etc. The minimum size of mounting components is 0402 and the maximum is 15mm. It can also be customized. Compared with E8S, E8D has higher production capacity, and the optimal production capacity per hour can reach 90000 CPH. For RT-1, E8D has higher accuracy.
Exclusive patented technology
1.Electronic feeder feeding system.
2.Vision alignment flight identifications, Mark correction.
3.Non-stop material re-loading function
4.Auto-optimization after coordinates generated, etc.
Technical parameter
| Dimension(L*W*H) | 3150*2250*1650mm |
| PCB Length Width | Max:1200*300mm Min:100*100mm |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| PCB Clamping | Adjustable pressure pneumatic |
| PCB Thickness | 0.5-5mm |
| System | Windows7 |
| Software | R&D independently |
| No. of Camera | 4 sets of imported camera |
| Mounting Speed | 45000CPH |
| Components | LED , capacitors, resistors, IC, shaped components, etc. |
| No. of Feeders Station | 28PCS |
| No. of nozzles | 12PCS |
Packing
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
FAQ
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
Why choose us?
We are the leading manufacturer of global optoelectronic high-speed pick and place machine, we have more than 10 years experience, Independent offices have been set up in India, Turkey, Egypt and other countries to provide better services.
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
Can we customize the machine?
Of course, all of our machines can be customize.
