Four Module RGB 100M LED Strip Light Manufacturing Machine SMT Pick Place Machine

Four Module RGB 100M LED Strip Light Manufacturing Machine SMT Pick Place Machine
Four Module RGB 100M LED Strip Light Manufacturing Machine SMT Pick Place Machine

Large Image :  Four Module RGB 100M LED Strip Light Manufacturing Machine SMT Pick Place Machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA,ISO
Model Number: HT-T9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Application: LED Strip
Power Supply: 380AC 50HZ Product Name: Automatic SMT Pick And Place Machine
Weight: 1700KG Mounting Speed: 200000-250000 CPH
Dimension: 2700*2300*1550mm Feeders: 68 Pcs
Pcb Thickness: 0.5-1.5mm
High Light:

100M LED Strip Light Manufacturing Machine

,

100M LED SMT Pick Place Machine

,

led strip manufacturing machine price

Four module RGB, 100M, LED strip light making SMT Pick and place  machine



Features

  • Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
  • Dual arm four modul, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
  • Calibration automatically, high precision, available for RGB.
  • Exclusive patent technology: Group to pick and group to mount.

IPC9850 Capacity: 200000~250000 CPH

Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0

Technical parameter

Model HT-T9
Dimension
Length 3100mm
Width 2300mm
Height 1550mm
Total Weight 1700kg
PCB
PCB Length Width 250mm*any length
PCB Thickness 0.5-1.5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group to take and group to mount
O.S.
System Windows7
Software R&D independently
Display Touch screen monitor
Input Device Keyboard, Mouse
Vision System
No. of Camera 5 PCS ( Digital camera)
Vision alignment, MARK correction
Mounting Precision ±0.02mm
Mounting Height ≦5mm
Mounting Speed 200000~250000 CPH
Components LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc.
Components Speed 0.5mm
No. of Feeders Station 68 PCS
No. of nozzles 68 PCS
Power 380AC 50 HZ
Power Consumption 6kw
Operating Environment 23℃±3℃
Conveyor transmission Max Length :1000 mm
Transmission speed >500mm/sec

Machine application

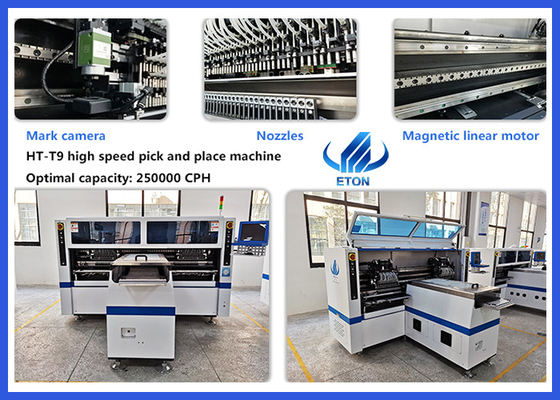

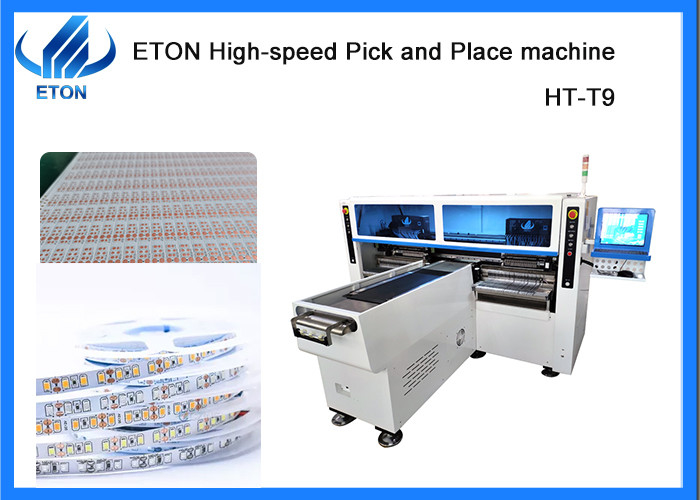

HT-T9 is a high speed pick and place machine, which is apply for flexible light strips of any length

PCB Size:250mm*any length

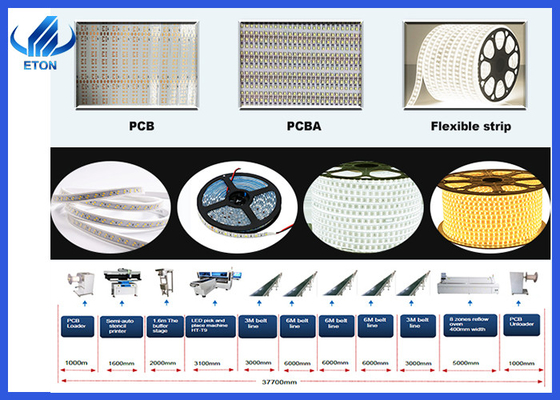

5m, 10m, 50m, 100m or flexible light strips of any length, RGB can be mounted.

Four Module RGB 100M LED Strip Light Manufacturing Machine SMT Pick Place Machine 0

Market

ETON company which not only provide our high speed SMT machine in Chinese market, but also overseas market to let our customer enjoy one site service, efficient production and low consumption. As for the 11 years trade with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:

Four Module RGB 100M LED Strip Light Manufacturing Machine SMT Pick Place Machine 1



Packages

Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.

Four Module RGB 100M LED Strip Light Manufacturing Machine SMT Pick Place Machine 2

Service

  • Professional solutions: Provide professional SMT Full line solutions
  • Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
  • Free Installation: On-site free installation to ensure smooth production.
  • Free Technical Training: Professional training of operating and maintenance.
  • Free Technical Support: 7 * 24 technical online support.
  • Free Software Upgrade: Offer free software upgrade whole lifetime

Four Module RGB 100M LED Strip Light Manufacturing Machine SMT Pick Place Machine 3
