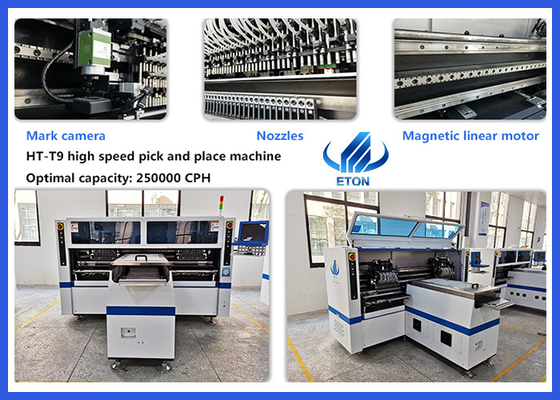

250k High speed 68 heads 250mm*any length led strip SMT machine
Features
- Producing with Producing 4 types materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
- Dual arm four modul, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
- Calibration automatically, high precision, available for RGB.
- Exclusive patent technology: Group to pick and group to mount.
IPC9850 Capacity: 200000~250000 CPH
Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0
Technical parameter
| Model |
HT-T9 |
| Dimension |
| Length |
3100mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB |
| PCB Length Width |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting Mode |
Group to take and group to mount |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
5 PCS ( Digital camera) |
| Vision alignment, MARK correction |
| Mounting Precision |
±0.02mm |
| Mounting Height |
≦5mm |
| Mounting Speed |
200000~250000 CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Speed |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of nozzles |
68 PCS |
| Power |
380AC 50 HZ |
| Power Consumption |
6kw |
| Operating Environment |
23℃±3℃ |
| Conveyor transmission |
Max Length :1000 mm |
| Transmission speed |
>500mm/sec |

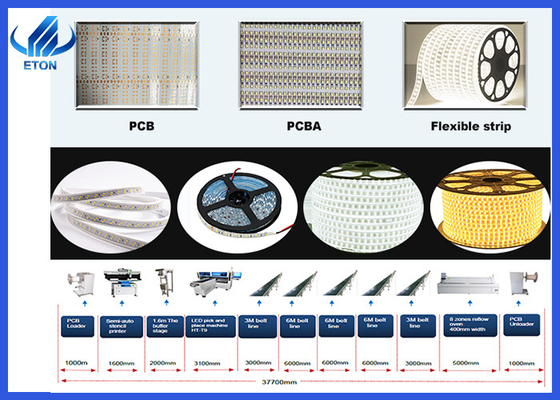

Machine application

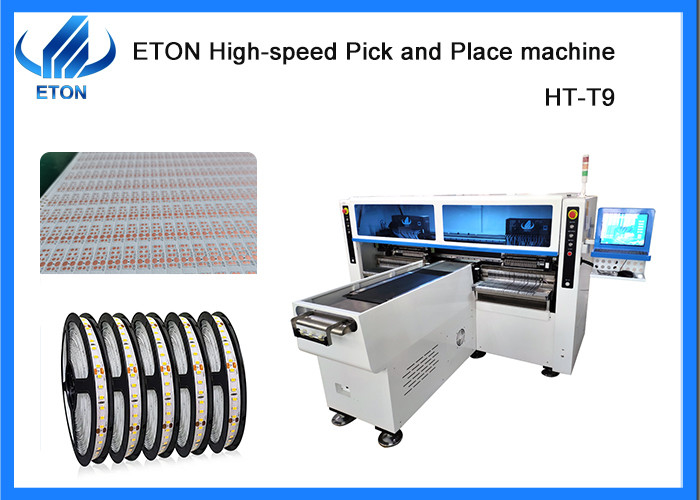

HT-T9 is a high speed pick and place machine, which is apply for flexible light strips of any length
PCB Size:250mm*any length
5m, 10m, 50m, 100m or flexible light strips of any length, RGB can be mounted.
