Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2550*1650*1550mm | PCB Size: | Max: 1200*500mm Min: 100*100mm |
|---|---|---|---|
| PCB Thickness: | 0.5~5mm | Mounting Mode: | Group Picking And Separately Placing、separately Picking And Separately Placing |
| Mounting Precision: | ±0.04mm | Mounting Height: | <15mm (Automatic Changing) |
| Mounting Speed: | 45000 CPH | No.of Feeders Station: | 28 PCS |
| No.of Head: | 12 PCS | Power: | 380AC 50Hz |
| Power Consumption: | 4 KW | X,Y,Z Axis Drive Way: | High-end Magnetic Linear Motor And Servo Motor |
| High Light: | fully automatic led bulb making machine,SMT LED Light Bulb Making Machine,45 k CPH Pick And Place Machine |
||
Fully Automatic Multifunctional High Precision Led Light Bulb Making Mahine 45000CPH Pick And Place Machine
Production Introduction of Pick and Place Machine HT-E8S
1. Single module magnetic linear motor multifunctional pick and place machine.
2. Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
3. Component: Min. Size 0402 Max. Height 15mm.

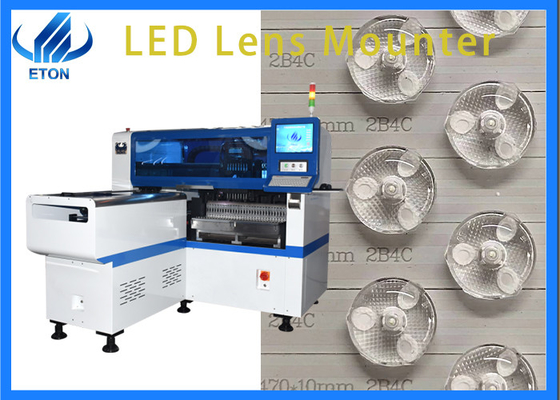

4. Application: Power driver,electric board,lens,DOB bulb,linear bulb,household appliance etc.
Exclusive patent technology
1. Electric feeder feeding system.
2. Vision alignment flight identification, Mark correction.
3. Non-stop material re-loading function
4. Auto-optimization after coordinates generated, etc.
HT-E8S of Technical Parameter
| Dimension | 1550*1650*1550mm |
| PCB Size | Max: 600*500mm Min: 100*100mm |
| PCB Thickness | 0.5~5mm |
| Mounting mode | Group picking and separately placing,separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting height | <15mm (Automatic changing) |
| Mounting speed | 45000 CPH |
| Components | LED chip,resistors,capacitors,IC,shaped components etc. |
| Components space | 0.2mm |
| No.of feeders station | 28 PCS |
| No.of head | 12 PCS |
| Power | 380AC 50Hz |
| Power consumption | 4 KW |
| X,Y,Z Axis drive way | High-end magnetic linear motor+servo motor |

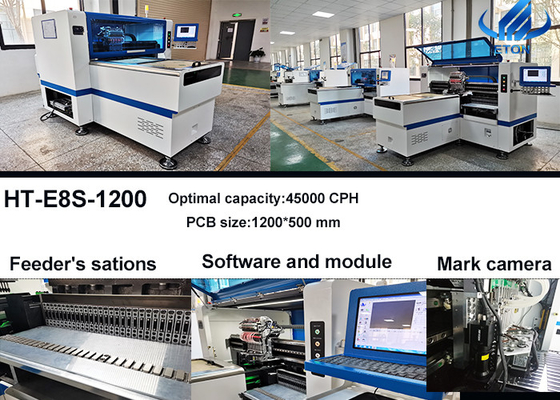

HT-E8S Picture
Application of HT-E8S

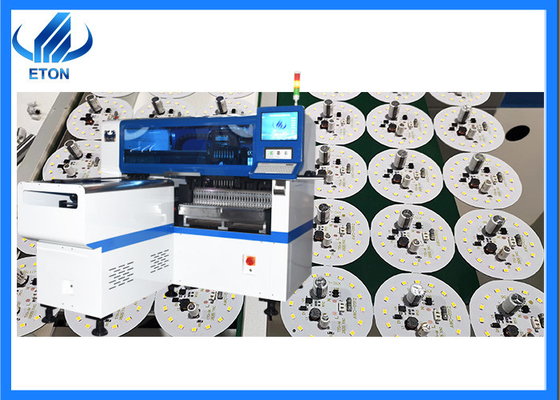

Apply to tube,driver,bulb,strip,lamp,panel,ceiling light,down light,screen,street light,etc.

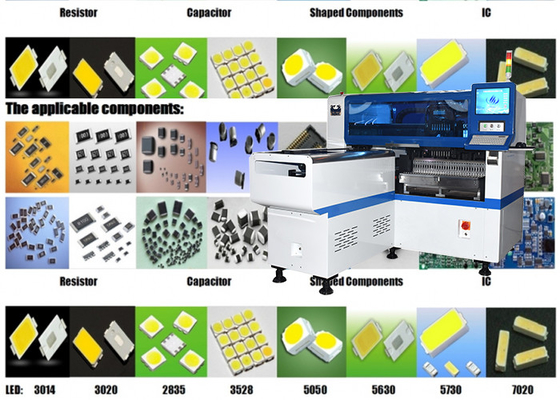

Apply to mounting LED,capacitors,resistors,IC,shaped components etc.
Company Introduction
Shenzhen ETON Automation Equipment Co.,Ltd. Was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
Certification
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, we got 9 invention patents, 112 practical patents,12 software patents and have rich experience(more than 8 years) in LED light production line program.
Our after-sales service of Pick and Place Machine
We provide send Free parts send to you in machine warranty period,and our engineers will visit to your factory help you to solve your machine’s problem.
Engineer site service installation and training.
After learning to maintain and use, you will be satisfied with our service.
Maintenance Period: 1 year. (whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free.
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
Package and Delivery of Pick and Place Machine
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step1:Film packaging.
Step2:Vacuum packaging.
Step3:Wooden box packaging
You can trust us, because we have professional and standard packaging to protect the machine.
Package and Delivery of Pick and Place Machine
Q:What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q: If my order is very urgent, how long you can proceed?
A: We have helped many clients with their urgent demand. If your order is urgent, please contact with our specialist and we will help you to apply special support.
Q:If machine have any problem after I receive it, how can I do ?
A:We will send Free parts send to you in machine warranty period,and our engineers will visit to your factory help you to solve your machine’s problem.
Q:Why choose us?
A: We provide professional in SMT line for 11 years,with strong production and strong capacity and R&D team,Has provided a lot of clients with modern SMT production line solutions.
Q: What about the shipping methods?
A: A variety of transportation methods for you to choose. By sea, air and road.
