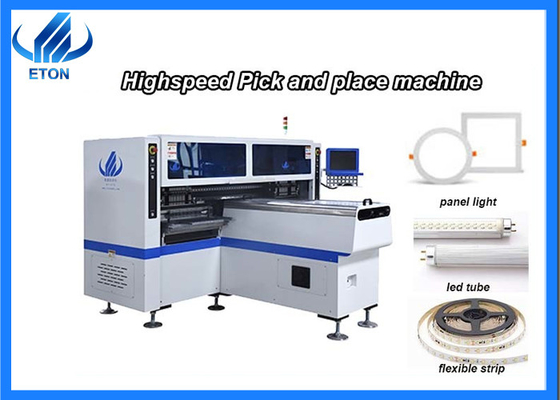

HT-F7S SMT Mounting Machine with 2-4 Types Materials & Group to take & mount
Product Description
- Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip . Producing with 2~4 types of materials with high capacity , available for board with any proportion of LED chip and resistor .
- Two mounting modules ,18 nozzles for each mounting part , part A or part B can be mounted separately or synchronously .
- Calibration automatically , high precision , available for RGB .
- Exclusive patent technology: Group to take and group to mount.
Technical parameter
| Model |
HT-F7S |
| PCB size(L* W) |
1200*330mm Min；100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group to take and group to mount |
| System |
Windows 7 |
| Software |
R&D Independently |
| Components |
LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
| No.of feeders station |
68PCS |
| No.of nozzles |
34PCS |
SMT Line solution
The equipment required for the semi-automatic production line includes:
Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
Reflow oven: melting the solder paste to make it adhere to the mounting components;
Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
Introduction to the principle of SMT component placement machine
The process of accurately attaching SMC/SMD to the corresponding position on the surface of the printed solder paste or patch glue on the PCB by a placement machine or manual method is called the placement (patch) process. In the current domestic electronic product manufacturing enterprises, automatic placement machines are mainly used for automatic placement, and manual placement can also be used. Hand patching is now generally used in maintenance or small batch trial production.
To ensure the quality of the patch, three elements should be considered: the correctness of the placement components, the accuracy of the placement position, and the appropriateness of the placement pressure (the height of the patch).
