Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Application: | SMT Production Line |
| Power Supply: | AC220V 50Hz | Condition: | New,100% Original,Brand-new |
| Mounting Speed: | 180000 CPH | Type: | Automatic |
| Usage: | SMT Mounting Machine | Feeders: | 68 |
| High Light: | SMT Mounting Machine for Rigid PCB,SMT Mounting Machine for 1.2m PCB,1m LED SMT Mounter Machine |
||

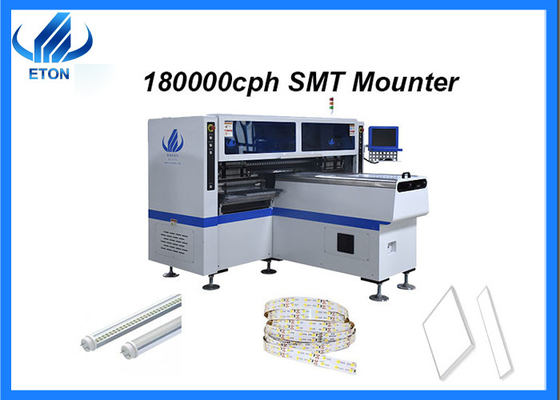

HT-F7S SMT Mounting Machine for 0.6m-1.2m Rigid PCB & 0.5m-1m LED Flexible Strip
Description
Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
Technical parameter
| Model | HT-F7S |
| PCB size(L* W) | 1200*330mm Min；100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take and group to mount |
| System | Windows 7 |
| Software | R&D Independently |
| Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
| No.of feeders station | 68PCS |
| No.of nozzles | 34PCS |
SMT Line solution
The equipment required for the semi-automatic production line includes:
Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
Reflow oven: melting the solder paste to make it adhere to the mounting components;
Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
Our advantage
ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies.
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
FAQ
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
Q.What is your merits of the machine to others production?
A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 52000 square meters industrial park to serve the production, assembly, and commissioning of our machines.
