Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Application: | SMT Production Line |
| Power Supply: | AC220V 50Hz | Condition: | New,100% Original,Brand-new |
| Mounting Speed: | 180000 CPH | Type: | Automatic |
| Usage: | SMT Mounting Machine | Feeders: | 68 |
| High Light: | 68 Station SMT Mounting Machine,SMT Mounting Machine For 0.5mm PCB,SMT Mounter for 5mm PCB |
||

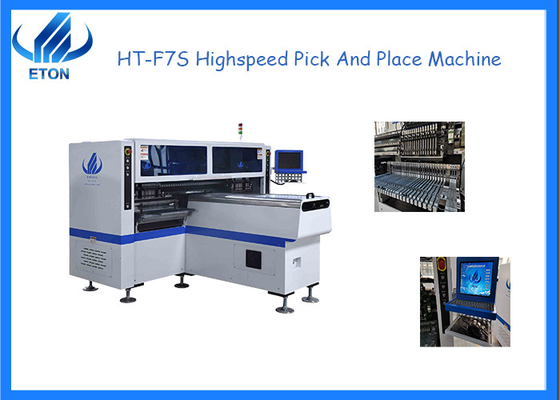

HT-F7S SMT Mounting Machine for 0.6m-1.2m Rigid PCB & 0.5m-1m LED Flexible Strip
Description
Apply to the 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1m LED flexible strip, producing with 4 types materials at the same time with high capacity, available for board with any proportion of LED chip and resistor.
Technical parameter
| Model | HT-F7S |
| PCB size(L* W) | 1200*330mm Min；100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take and group to mount |
| System | Windows 7 |
| Software | R&D Independently |
| Components | LED3014/3020/3528/5050,capacitors,resistors,bridge rectifiers etc |
| No.of feeders station | 68PCS |
| No.of nozzles | 34PCS |
SMT Line solution
The equipment required for the semi-automatic production line includes:
Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
Reflow oven: melting the solder paste to make it adhere to the mounting components;
Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line
Company profiles
ETON over 10 years experience in SMT machines, so we are very professional to provide whole line solution.
ETON got large market share in USA, KOREA,INDIA, GERMANY,TURKEY more than 20 countries, also expanded our plant and built a new bigger industrial park in Jiangxi Province.
ETON have modern self-owned industrial park with 52,000 square meters. More than 500 employees , The annual sales scaled over 800 million yuan.
Packing
All machines are packed with vacuum and wooden packing like the one in the pictures.
Shipping: --- We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. --- Sea shipping for machine.
Service
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
24 hours online for you to answer.
FAQ
Q. How is the differences of your multifunctional machine and high-speed machine?
A. The mounting mode of multifunctional and high speed machine which decides the range of their mounting products, and the mounting capacity is to distinguish this two types of the machine, such as multifunctional pick and place machine RT-1 with capacity of 40000 CPH, while high speed mounter machine HT-T9 with 250000 CPH capacity.
Q.How can I make inspection when something wrong with the machine?
A. Well, the inspection is taken by our professional engineer to check and modulate the machine, if you counter any problem of our machine please contact us, and we will arrange our engineer to solve it.
Q. How long is the machine maintenance period, whether it is free?
A. The maintenance period of our machine is 1 year and its free for our clients, after the maintenance period we will arrange our engineers to check and test the machine one or two times a year freely.
