Mid Speed 48000 Capacity Pick And Place Machine 1.5KW Energy Saving

Name: Mid Speed 48000 Capacity Pick And Place Machine 1.5KW Energy Saving
Brand: ETON
SKU: KT10S
Rating: 4.7 (181 reviews)

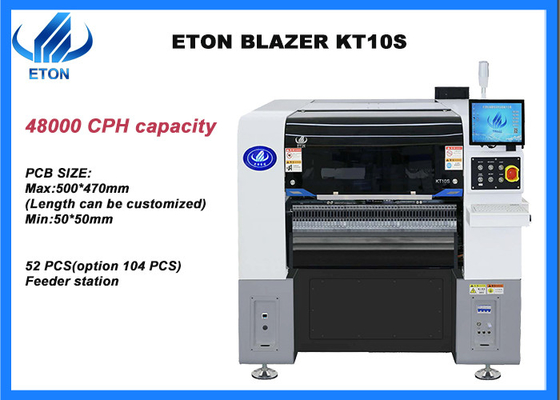

Large Image : Mid Speed 48000 Capacity Pick And Place Machine 1.5KW Energy Saving

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE,CCC,SIRA,ISO
Model Number:	KT10S

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Warranty:	1 Year	Applicable Components:	CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Power Supply:	220AC 50HZ 1.5KW	Product Name:	Automatic SMT Pick And Place Machine
Weight:	2080KG	Mounting Speed:	48000 CPH(Optimal Speed)
Dimension:	149020201650mm	Feeders:	52 PCS(option 104 PCS), IC Tray Option
Pcb Thickness:	0.5-5 Mm
High Light:	48000 Capacity Pick And Place Machine , 5 mm PCB Pick Place Machine , Mid Speed SMT machine

1.5KW save energy Mid speed 48000 capacity Pick and place machine

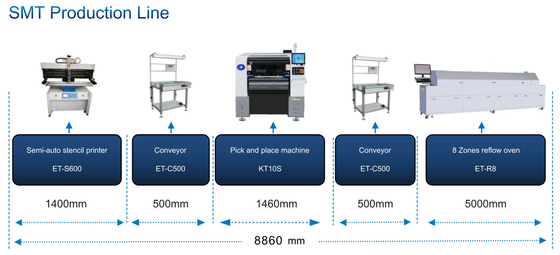

SMT Line solution

The equipment required for the semi-automatic production line includes:

Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
Reflow oven: melting the solder paste to make it adhere to the mounting components;
Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line

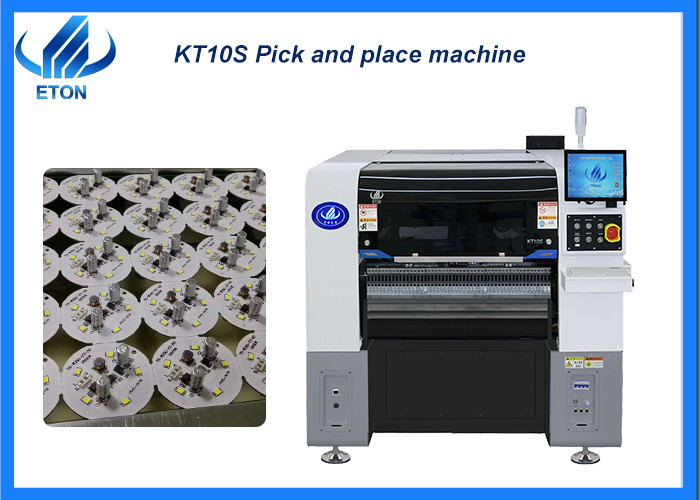

Mid Speed 48000 Capacity Pick And Place Machine 1.5KW Energy Saving 0

Machine main features

Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
Y axis double drive gantry, higher speed more stability
The placement head adopt independent vacuum detection, improve the placement performance
Off-line programming, save time of changeover cycle
Equipped coordinate import function, more intelligent

Machine main parameter

Model	KT10S
Dimension	146020151654mm
Total weight	2080kg
PCB size	Max:500470mm(Length can be customized) Min:5050mm
PCB thickness	0.5-5mm
Mounting precision	CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed	48000 CPH(Optimal speed)
Components	LED, capacitor, resistors, shaped components,etc
Power consumption	220AC 50HZ 1.5KW
Feeder station	52 PCS(option 104 PCS), IC tray option
No. of head	10 PCS

Certificates

As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 200 practical patents, 49 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

etc.

Mid Speed 48000 Capacity Pick And Place Machine 1.5KW Energy Saving 1

Shipping and Delivery

As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:

Land transportation: suitable for inland countries and it is affordable;

Air freight: for urgent good, and it is the most expensive transportation way;

Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.

Mid Speed 48000 Capacity Pick And Place Machine 1.5KW Energy Saving 2
