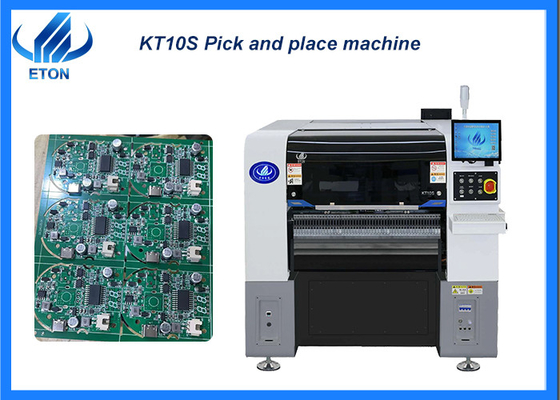

Max 500*470MM PCB SMT Pick And Place Machine For Household Appliance

Max 500*470MM PCB SMT Pick And Place Machine For Household Appliance
Max 500*470MM PCB SMT Pick And Place Machine For Household Appliance Max 500*470MM PCB SMT Pick And Place Machine For Household Appliance Max 500*470MM PCB SMT Pick And Place Machine For Household Appliance

Large Image :  Max 500*470MM PCB SMT Pick And Place Machine For Household Appliance

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA,ISO
Model Number: KT10S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Application: LED Lights, Electrical Products, Household Appliance
Power Supply: 220AC 50HZ 1.5KW Mounting Speed: 48000 CPH(Optimal Speed)
Condition: New Weight: 2080KG
Dimension: 1490*2020*1650mm Feeders: 52 PCS(option 104 PCS), IC Tray Option
Pcb Thickness: 0.5-5 Mm
Highlight:

Max 500*470MM Pick And Place Machine

,

500*470MM PCB Pick Place Machine

,

Pick Place Machine For Household Appliance

Max 500*470MM PCB for household appliance SMT pick and place machine



Packages

Step 1: Packing in film package to prevent dust and water to the machine

Step 2: Packing in foam cotton to protect the outside of the machine

Step 3: Packing in vacuum package to keep dry of the machine during transportation

Step 4: Transportation by truck to specified port

Max 500*470MM PCB SMT Pick And Place Machine For Household Appliance 0

Machine main features

  • Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
  • Y axis double drive gantry, higher speed more stability
  • The placement head adopt independent vacuum detection, improve the placement performance
  • Off-line programming, save time of changeover cycle
  • Equipped coordinate import function, more intelligent

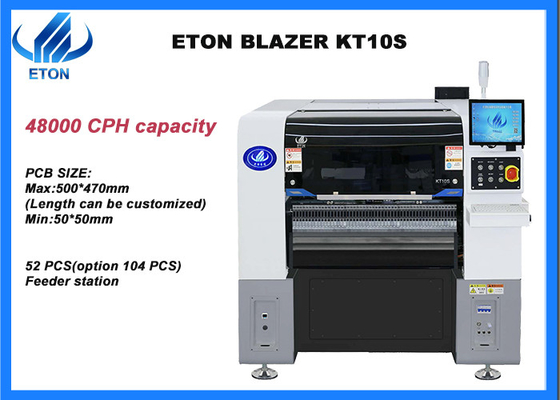

Machine main parameter

Model KT10S
Dimension 1460*2015*1654mm
Total weight 2080kg
PCB size Max:500*470mm(Length can be customized) Min:50*50mm
PCB thickness 0.5-5mm
Mounting precision CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed 48000 CPH(Optimal speed)
Components LED, capacitor, resistors, shaped components,etc
Power consumption 220AC 50HZ 1.5KW
Feeder station 52 PCS(option 104 PCS), IC tray option
No. of head 10 PCS

SMT Line solution

A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.

Max 500*470MM PCB SMT Pick And Place Machine For Household Appliance 1

Our advantage

  • Focusing on SMT high speed pick and place machine more than 20 years
  • The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
  • ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.

Max 500*470MM PCB SMT Pick And Place Machine For Household Appliance 2

Max 500*470MM PCB SMT Pick And Place Machine For Household Appliance 3





Shipping and Delivery

Max 500*470MM PCB SMT Pick And Place Machine For Household Appliance 4
