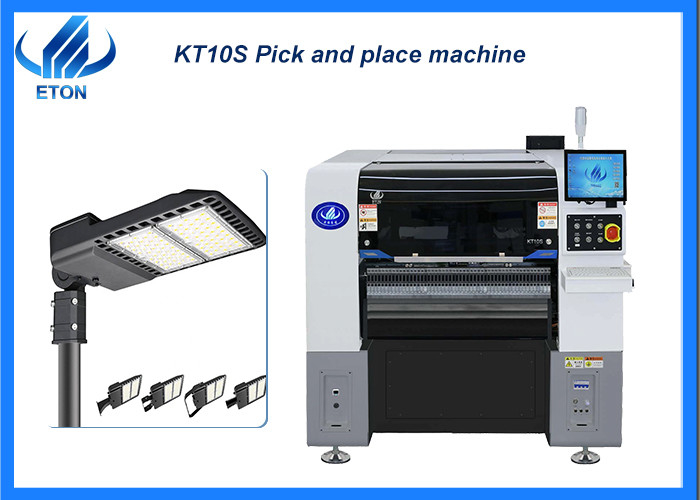

New innovation Integrated module 10 heads SMT pick and place machine
Market
Our products are exported to more than 30countries & regions
Such as South Korea, Turkey, Egypt, India, Russia, America, Brazil, Tunisia, Poland, Lithuania, South Africa, Iran, Vietnam, Pakistan , Saudi Arabia, Uzbekistan, Nigeria , Germany, etc
Machine main features
- Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
- Y axis double drive gantry, higher speed more stability
- The placement head adopt independent vacuum detection, improve the placement performance
- Off-line programming, save time of changeover cycle
- Equipped coordinate import function, more intelligent
Machine main parameter
| Model |
KT10S |
| Dimension |
1460*2015*1654mm |
| Total weight |
2080kg |
| PCB size |
Max:500*470mm(Length can be customized) Min:50*50mm |
| PCB thickness |
0.5-5mm |
| Mounting precision |
CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) |
| Mounting speed |
48000 CPH(Optimal speed) |
| Components |
LED, capacitor, resistors, shaped components,etc |
| Power consumption |
220AC 50HZ 1.5KW |
| Feeder station |
52 PCS(option 104 PCS), IC tray option |
| No. of head |
10 PCS |
Machine application
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
Related machine

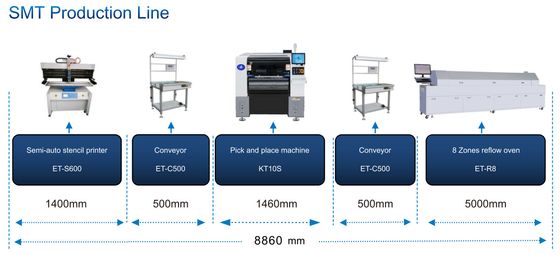

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
