LED lens mounting machine SMT production line
Lens mounting
The mounting of lens is different from that of other products. The lamp beads need to be mounted before mounting the lens
Lamp bead production line: semi-automatic printing machine - connecting platform - mounting machine - reflow soldering
Lens production line: Dispenser - Docking station - Mounter - Docking station - UV curing furnace/reflow soldering

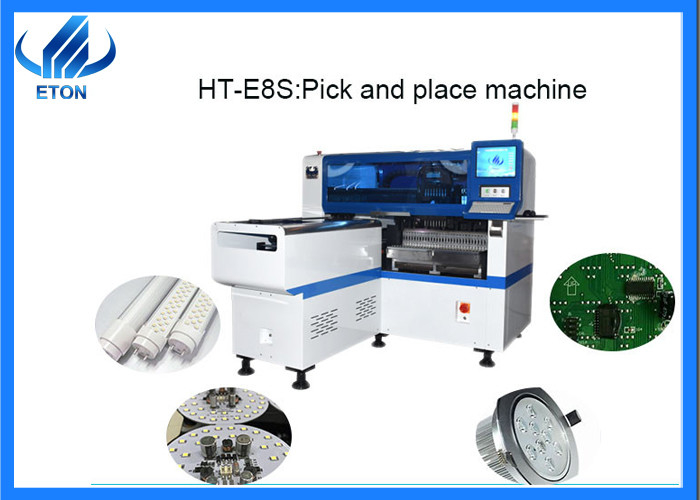

Take E8S-1200 as an example:
Actual production capacity of lamp beads: 21000-23000CPH
Actual capacity of dispensing machine: 40000-50000CPH
Actual production capacity of lens: 12000-14500CPH
Technical parameter
| Model |
HT-E8S-1200 |
| Dimension |
|
| Length |
2550 mm |
| Width |
1650 mm |
| Height |
1550 mm |
| Total Weight |
1700 kg |
| PCB |
|
| PCB Length Width |
Max:1200*500mm Min:100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| Vision System |
|
| No. of Camera |
2 sets of imported camera |
| Vision for the flight identification, MARK correction |
|
| Mounting Precision |
±0.04mm |
| Mounting Height |
<15mm (Automatic Changing) |
| Mounting Speed |
45000 CPH |
| Components |
LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space |
0.2mm |
| No. of Feeders Station |
28 PCS |
| No. of nozzles |
12 PCS |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor + Servo motor |
| Feeding way |
Electric feeder with double motor |
Finished product
FAQ
Q: How about the after-sale service? How about the warranty?
A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
Q:Did you develop your own machine?
A:It has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents.
Q:What is your machine suitable for?
A:Our machines are widely used in lighting, display screen, electronics, driving power supply, household appliances, new energy and other industries.
