| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | New,100% Original,Brand-new |
| Mounting Speed: | 45000 CPH | Usage: | Circuit Board Assembly,SMT Mounting Machine,LED |
| Feeders: | 28 | Type: | Automatic |
| High Light: | Precision 0.02mm SMT Mounter Machine,SMT Mounter Machine For Panel Lights,Pick And Place Machine For 0402 |
||
LED lens mounting machine SMT production line
Panel light introduction
LED panel lamp is a high-end indoor lighting lamp. Its outer frame is made of aluminum alloy by anodizing. The light source is led. The whole lamp design is beautiful, simple, atmospheric and luxurious. It not only has good lighting effect, but also can bring people a beautiful feeling. The LED panel lamp has a unique design. The light passes through the light guide plate with high transmittance to form a uniform plane luminous effect. The illumination uniformity is good, the light is soft, comfortable and bright, which can effectively alleviate eye fatigue. LED panel light can also prevent radiation and will not stimulate the skin of pregnant women, the elderly and children.
Lens mounting
The mounting of lens is different from that of other products. The lamp beads need to be mounted before mounting the lens
Lamp bead production line: semi-automatic printing machine - connecting platform - mounting machine - reflow soldering
Lens production line: Dispenser - Docking station - Mounter - Docking station - UV curing furnace/reflow soldering
Take E8S-1200 as an example:
Actual production capacity of lamp beads: 21000-23000CPH
Actual capacity of dispensing machine: 40000-50000CPH
Actual production capacity of lens: 12000-14500CPH
Technical parameter
| Model | HT-E8S-1200 |
| Dimension | |
| Length | 2550 mm |
| Width | 1650 mm |
| Height | 1550 mm |
| Total Weight | 1700 kg |
| PCB | |
| PCB Length Width | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| Vision System | |
| No. of Camera | 2 sets of imported camera |
| Vision for the flight identification, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | <15mm (Automatic Changing) |
| Mounting Speed | 45000 CPH |
| Components | LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space | 0.2mm |
| No. of Feeders Station | 28 PCS |
| No. of nozzles | 12 PCS |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |
Product Description

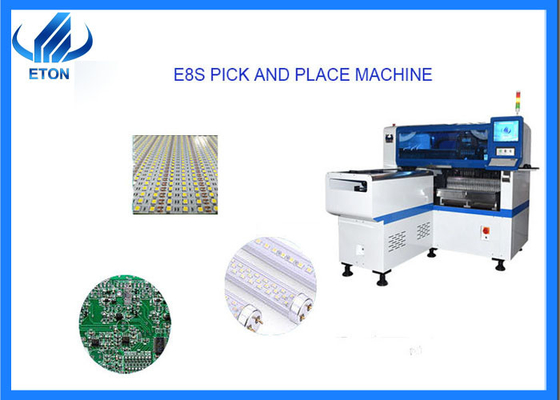

HT-E8S-1200 SMT mounting machine has the advantage of very fast production capacity in the same class of products, and the theoretical production capacity value can reach 45000CPH.
With 12 suction nozzles and 28 feeders, it can absorb a variety of complex components of different sizes and produce diversified products.
FAQ
Q:which kind of raw material should i prepared for SMT line?
A:you need to prepared mainly include:PCB, Solder paste, Components, Feeders, Nozzles etc.
Q:Can i visit the production site of your machines in India?
A:i have to ask my client. After all,this is our customer’s factory.we cant not make decisions for my clients. I think that you wouldn’t want your competitors visit your manufacturing site.please understand.
