Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Application: | For SMT Machine | Condition: | New,100% Original,Brand-new |
| Type: | SMT Machine Related Products | Usage: | LED |
| Zones: | 8 Zones | Weight: | 900kg |
| High Light: | 8-Zone reflow oven machine,PLC Control reflow oven machine,smt reflow oven manufacturers |
||
ET-R8 Reflow Oven, 8-Zone Heating/Cooling, 5line 3phase 380V 50/60Hz Power Supply in led production
Parameter of reflow oven
| Model | ET-R8 | |
| Heating System | Number of heating zones | UP 8/BOTTOM 8 |
| Number of cooling zones | Up1/bottom1 | |
| Length of heating zones | 3000MM | |
| Heating mode | hot air | |
| Cooling Mode | Force air | |
| Conveyor speed | 0-1500mm/min | |
| Upper hood method | Auto | |
| Control system | Power supply | 5line 3phase 380V 50/60Hz |
| Total power | 40kw | |
| Starting power | 38kw | |
| Temp. setting range | Room temperature-300℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Temp. control method | PLC & PC | |
| General | Dimension(L*W*H) | 4600×1200×1490mm |
| Weight | 900KG | |
Fold second generation
Infrared thermal radiation reflow soldering equipment: the heat transfer efficiency is slow, 5-30w/m2k (the infrared radiation efficiency of different materials is different), there is a shadow effect, and the color of components has a great impact on the heat absorption.
Fold the third generation
Hot air reflow soldering equipment: high heat transfer efficiency, 10-50 w/m2k, no shadow effect, color has no effect on heat absorption.

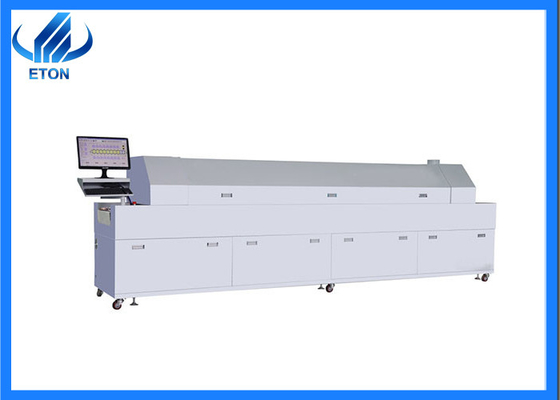

ET-R8 Reflow oven
All temperature zones are heated separately up and down, independent hot air circulation, independent temperature control, and the temperature control accuracy of each temperature zone is ±1℃.
Modular heating structure can effectively prevent the influence of airflow in the temperature range, ensure that the components are heated evenly, and the lateral temperature deviation is <±2℃.
The opening of the upper furnace body adopts pneumatic jacking, which is safe and reliable and convenient for furnace cleaning
Company profile
1.Strong research and develop technology team, support machine upgrade continuously, support client strong technical support
Rich experience in SMT Industry Line.
2.ETON set up more than 10 years, we are leading manufacturer of SMT machine in China
3. Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province
4.Provide engineer Door-to-door service, support video online training, video training share,free replaced machine core part during warranty.
5.Company five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
FAQ
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
Q: Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
Q: What is your payment terms?
A:100% payment before delivery or 50% deposit in advance and the rest before shipment.
