Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Application: | For SMT Machine | Condition: | New,100% Original,Brand-new |
| Type: | SMT Machine Related Products | Usage: | LED |
| Zones: | 8 Zones | Weight: | 900kg |
| High Light: | 40kw SMT Reflow Oven,SMT Reflow Oven 4600*1200*1490mm |
||

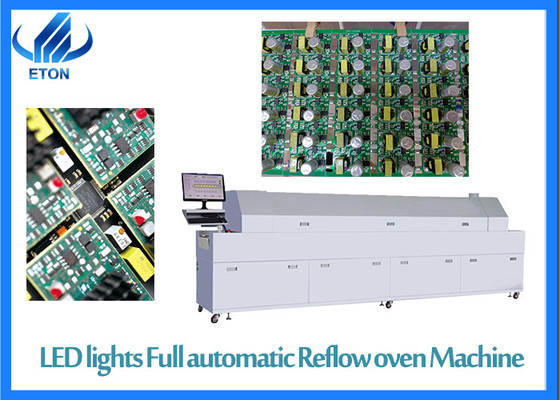

ET-R8 Reflow Oven, 8-Zone Heating/Cooling, 5line 3phase 380V 50/60Hz Power Supply in led production
Parameter of reflow oven
| Model | ET-R8 | |
| Heating System | Number of heating zones | UP 8/BOTTOM 8 |
| Number of cooling zones | Up1/bottom1 | |
| Length of heating zones | 3000MM | |
| Heating mode | hot air | |
| Cooling Mode | Force air | |
| Conveyor speed | 0-1500mm/min | |
| Upper hood method | Auto | |
| Control system | Power supply | 5line 3phase 380V 50/60Hz |
| Total power | 40kw | |
| Starting power | 38kw | |
| Temp. setting range | Room temperature-300℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Temp. control method | PLC & PC | |
| General | Dimension(L*W*H) | 4600×1200×1490mm |
| Weight | 900KG | |
Fold second generation
Infrared thermal radiation reflow soldering equipment: the heat transfer efficiency is slow, 5-30w/m2k (the infrared radiation efficiency of different materials is different), there is a shadow effect, and the color of components has a great impact on the heat absorption.
Fold the third generation
Hot air reflow soldering equipment: high heat transfer efficiency, 10-50 w/m2k, no shadow effect, color has no effect on heat absorption.
ET-R8 Reflow oven
All temperature zones are heated separately up and down, independent hot air circulation, independent temperature control, and the temperature control accuracy of each temperature zone is ±1℃.
Modular heating structure can effectively prevent the influence of airflow in the temperature range, ensure that the components are heated evenly, and the lateral temperature deviation is <±2℃.
The opening of the upper furnace body adopts pneumatic jacking, which is safe and reliable and convenient for furnace cleaning
Certification:
We got 9 invention patents, 112 practical patents,12 software patents.
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as “Well-know brand” and many technology patents, and have rich experience(more than 8 years) in LED light production line program.
Our Exhibitions
ETON is a very strong and powerful company. We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
We occurred 85% percent in China LED lighting markets, but also send machines to India, Korea, UK, Russia, Egypt, Turkey, Vietnam, Japan, Australia, Poland, etc more than 20 countries.
Working with ETON is guaranteed, let’s light up your business!
FAQ
1.What are the main application about the pick and place machine?
We have many different machine, and different machines apply to different applications. The main products include panel light, ceiling light, LED bulb, LED tube etc. For example, the professional mounter HT-f9 is available for flexible strip and LED tube.
2.How about the operation software of the machine?
Our software are Independent R&D by ourselves with 2 language( English and Chinese).
3.How about your after sales services?
We have ONE YEAR Maintenance period. When you are operating ,you can communicate with our engineer for help any questions.
4.what can you buy from us?
Solder paste stencil printer, conveyor, Pick and place machine, reflow oven and All equipment related to the smt production line
5.What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
