Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Application: | For SMT Machine | Condition: | New,100% Original,Brand-new |
| Type: | SMT Machine Related Products | Usage: | LED |
| Zones: | 8 Zones | Weight: | 900kg |
| High Light: | PC control SMT Reflow Oven,1500 mm/min SMT Reflow Oven |
||

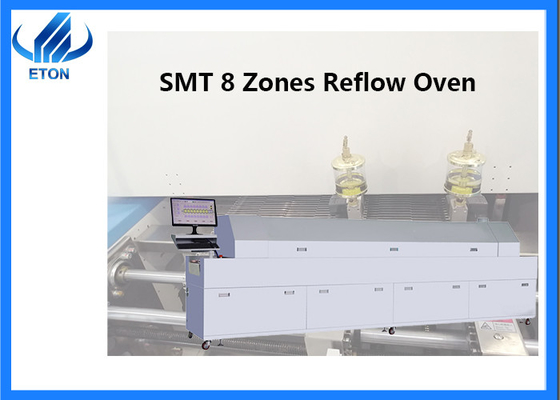

ET-R8 Reflow Oven, 8-Zone Heating/Cooling, 5line 3phase 380V 50/60Hz Power Supply in led production
Parameter of reflow oven
| Model | ET-R8 | |
| Heating System | Number of heating zones | UP 8/BOTTOM 8 |
| Number of cooling zones | Up1/bottom1 | |
| Length of heating zones | 3000MM | |
| Heating mode | hot air | |
| Cooling Mode | Force air | |
| Conveyor speed | 0-1500mm/min | |
| Upper hood method | Auto | |
| Control system | Power supply | 5line 3phase 380V 50/60Hz |
| Total power | 40kw | |
| Starting power | 38kw | |
| Temp. setting range | Room temperature-300℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Temp. control method | PLC & PC | |
| General | Dimension(L*W*H) | 4600×1200×1490mm |
| Weight | 900KG | |
Fold second generation
Infrared thermal radiation reflow soldering equipment: the heat transfer efficiency is slow, 5-30w/m2k (the infrared radiation efficiency of different materials is different), there is a shadow effect, and the color of components has a great impact on the heat absorption.
Fold the third generation
Hot air reflow soldering equipment: high heat transfer efficiency, 10-50 w/m2k, no shadow effect, color has no effect on heat absorption.
ET-R8 Reflow oven
All temperature zones are heated separately up and down, independent hot air circulation, independent temperature control, and the temperature control accuracy of each temperature zone is ±1℃.
Modular heating structure can effectively prevent the influence of airflow in the temperature range, ensure that the components are heated evenly, and the lateral temperature deviation is <±2℃.
The opening of the upper furnace body adopts pneumatic jacking, which is safe and reliable and convenient for furnace cleaning
ETON is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment.
Three series pick and place machine
(1)multi-function pick and place machine:
apply for all kinds of products, including electric board, power driver, display, bulb, DOB, down light and so on.
(2)high-speed pick and place machine:
Apply for linear products, including tube, 1M, 5M, 10M or any length of LED flexible strip, the fastest mounting speed reach 500000 CPH
(3)ETON HONOR series:
The minimum mounting component is 0201, add new parts: IC tray feeder, docking cart and smart double head tape feeder. Improve the production efficiency
Company profile
(1)Shenzhen ETON automation equipment CO.,Ltd. was founded in 2011 and Jiangxi Intelligent industrial Park was used in 2020. So far, ETON has more than 11 years experience.
(2)ETON is the leading manufacturer of global photoelectric high speed pick and place machine and enjoys a good reputation around the world.
(3)The produces have exported more than 20 countries and regions, including Egypt, India,Turkey, Russia, Brazil, South Africa and so on.
(4)ETON has five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
(5)ETON also keep “no worries” after-sales service, and the products are supported to personal customization, specialist sale always track the production and transportation of equipment.
FAQ
1.Do you provide the complete production line machine?
Yes, of course. We provide the whole production line machine, including solder paste printer machine, conveyor, pick and place machine reflow oven.
2.How about the operating software?
Our software is R&D independently by ourselves.
3.What about the mode of transport?
Both sea, air and road are OK.
4.How about the operation software language of the machine?
Our software are Independent R&D by ourselves with 2 language( English and Chinese).
5.What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
