Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Application: | For SMT Machine | Condition: | New,100% Original,Brand-new |
| Type: | SMT Machine Related Products | Usage: | LED |
| Zones: | 8 Zones | Weight: | 900kg |
| High Light: | 3phase SMT Reflow Oven,5line SMT Reflow Oven |
||

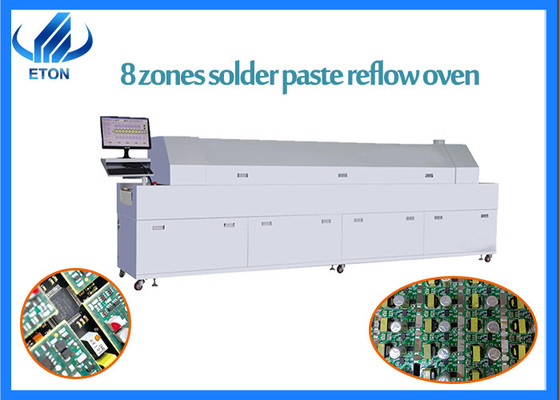

ET-R8 Reflow Oven, 8-Zone Heating/Cooling, 5line 3phase 380V 50/60Hz Power Supply in led production
Parameter of reflow oven
| Model | ET-R8 | |
| Heating System | Number of heating zones | UP 8/BOTTOM 8 |
| Number of cooling zones | Up1/bottom1 | |
| Length of heating zones | 3000MM | |
| Heating mode | hot air | |
| Cooling Mode | Force air | |
| Conveyor speed | 0-1500mm/min | |
| Upper hood method | Auto | |
| Control system | Power supply | 5line 3phase 380V 50/60Hz |
| Total power | 40kw | |
| Starting power | 38kw | |
| Temp. setting range | Room temperature-300℃ | |
| Temp. deviation on PCB | ±2℃ | |
| Temp. control method | PLC & PC | |
| General | Dimension(L*W*H) | 4600×1200×1490mm |
| Weight | 900KG | |
Fold second generation
Infrared thermal radiation reflow soldering equipment: the heat transfer efficiency is slow, 5-30w/m2k (the infrared radiation efficiency of different materials is different), there is a shadow effect, and the color of components has a great impact on the heat absorption.
ETON is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machine and SMT peripheral automation equipment.
Three series pick and place machine
(1)multi-function pick and place machine:
apply for all kinds of products, including electric board, power driver, display, bulb, DOB, down light and so on.
(2)high-speed pick and place machine:
Apply for linear products, including tube, 1M, 5M, 10M or any length of LED flexible strip, the fastest mounting speed reach 500000 CPH
(3)ETON HONOR series:
The minimum mounting component is 0201, add new parts: IC tray feeder, docking cart and smart double head tape feeder. Improve the production efficiency
Company profile
ETON has a 14-year history in the placement machine industry. It established a research and development center in 2007
.In 2010, seven patents were obtained, including "group selection and group score" and "group selection adjustment".2010
Shenzhen ETON Automation Equipment Co., Ltd. in 2011, and its first branch in 2020. Since the development of the multi-function placement machine in 2014, after years of painstaking research and development, a breakthrough in technology has finally been achieved, and a variety of multi-functional universal placement machines have been successfully developed.
Service
Maintenance period 1 year
One year warranty during warranty any parts that need to be repaired and replaced will be free.
Software and hardware lifetime maintenance
Free upgrade software, the software is Reach and developed by ETON, so we support whole lifetime free upgrade updates.
Visit customers regularly and gather information
Visit clients regularly. We attend the different exhibitions in different cities every year, at the same time, we will visit local clients and support our service and collect feedback on customer suggestions in time.
Provide the latest information about technology and equipment
We give professional technology suggestions to our clients. And share the updated news with our clients
On-site service
We have some official site in India as Mumbai and New Delhi, also have site in Egypt, Turkey that can provide service timely with our engineers.
According to your needs, dedicated senior engineer will come to your factory for free install and training you how to operate the machine.
Packages
Our package step is follow the blowing:
Step 1: Packing in film package to prevent dust and water to the machine
Step 2: Packing in foam cotton to protect the outside of the machine
Step 3: Packing in vacuum package to keep dry of the machine during transportation
Step 4: Transportation by truck to specified port
FAQ
Q: About technical offer
A: As for machine operation, we will arrange engineers to go to your factory for installation and teaching after you buy our machines.
If you have engineers who have been involved in the installation of SMT equipment, we can teach you how to install it online.
Q:How can we buy from us?
A: Pick and place machine, smt production line, stencil printer, reflow oven, load/unload machine, feeder,nozzle,etc.
Q: What service can we provide?
A:1.Free install, debug and train
2.Software free upgrade
3.Maintenance period: 1 year
Q: Do you sell nozzles and spares?
A:Yes, we do sell nozzles and feeders, if you need any spares, just let us know.
