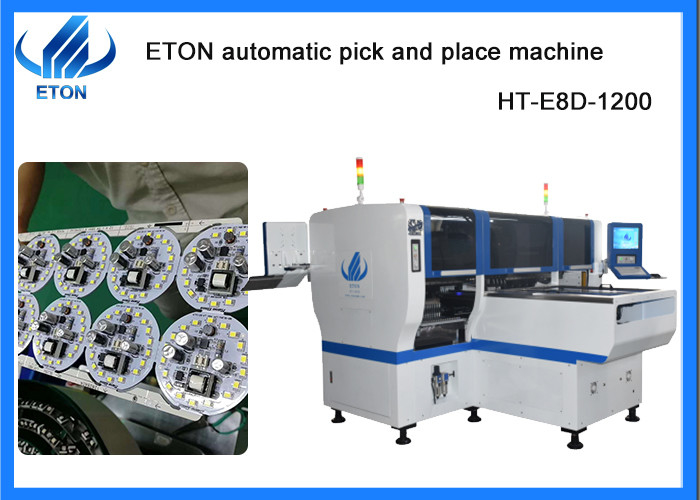

LED Lighting SMT Pick And Place Machine 48 PCS Feeder Mid / High Speed

Large Image : LED Lighting SMT Pick And Place Machine 48 PCS Feeder Mid / High Speed

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE,CCC,SIRA,ISO
Model Number:	HT-E8D-1200
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Warranty:	1 Year	Applicable Components:	0402
Application:	LED Lights, Electrical Products, Household Appliance	Power Supply:	380AC 50HZ
Product Name:	Automatic SMT Pick And Place Machine	Weight:	2500kg
Mounting Speed:	90000 CPH	Dimension:	3150mm2250mm1650mm
Pcb Thickness:	0.5-5 Mm
Highlight:	LED Pick And Place Machine ISO , SMT Pick Place Machine for Lighting , Mid Speed smt Pick Place Machine

48 PCS feeder Mid-high speed LED lighting SMT pick and place machine

Our advantage

ETON is the pioneer of SMT machine field in China which have more than 11 years experiences. And owned CCC, SIRA, CE certificates with 9 invention patents, 200 practical patents, 49 software copyrights of intellectual property technologies.

Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.

LED Lighting SMT Pick And Place Machine 48 PCS Feeder Mid / High Speed 0

Certificates

As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 200 practical patents, 49 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

LED Lighting SMT Pick And Place Machine 48 PCS Feeder Mid / High Speed 1

Description

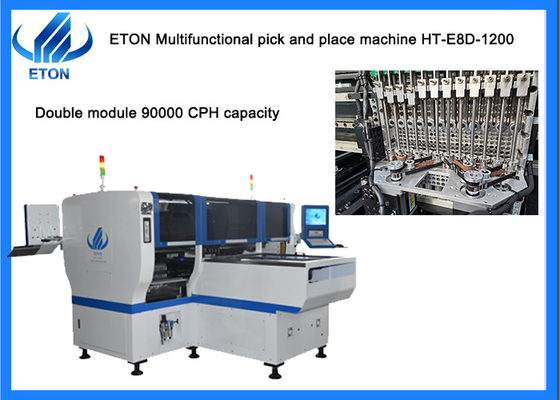

Dual system, dual module multifunctional mounter. To produce two different products at same time.

Mounting components: LED chips/capacitors/resistors/IC/shaped components/etc.

Component: Min. size 0402 Max. height 15mm

Application: Power driver. electric board. lens. linear bulb. DOB, household appliance etc.

Exclusive patented technology

Electronic feeder feeding system.

Vision alignment flight identifications, Mark correction.

Non-stop material re-loading function

Auto-optimization after coordinates generated, etc.

Technical parameter

Model	HT-E8D-1200
Total Weight	2500kg
PCB Length Width	Max:1200300mm Min:100100mm
PCB Thickness	0.5-5mm
PCB Clamping	Adjustable pressure pneumatic
Mounting Mode	Group picking and separate placingseparate picking and separate placing
Software	R&D independently
Mounting Speed	90000 CPH(The optimum speed )
Components	LED , capacitors, resistors, IC, shaped components, etc.
Components Space	0.2mm
No. of Feeders Station	48 PCS
No. of nozzles	24 PCS
Power	380AC 50HZ
Power Consumption	8 KW
Operating Environment	23℃±3℃
Conveyor transmission	Max length :1200 mm
Transmission Speed	＞1000mm/sec
X,Y,Z Axis Drive way	High-end magnetic linear motor + Servo motor
Feeding way	Electric feeder with double motor

LED Lighting SMT Pick And Place Machine 48 PCS Feeder Mid / High Speed 2

SMT Line solution

The equipment required for the semi-automatic production line includes:

Semi-automatic printing machine: the solder paste is printed on the PCB pad through the stencil;
Pick and place machine: mount the led chips or other components on the designated position on the PCB board;
Reflow oven: melting the solder paste to make it adhere to the mounting components;
Conveyor: inspect the placement and soldering quality, and also play a role in transferring PCB boards and buffering on the SMT production line

LED Lighting SMT Pick And Place Machine 48 PCS Feeder Mid / High Speed 3

Related machine

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

LED Lighting SMT Pick And Place Machine 48 PCS Feeder Mid / High Speed 4
