Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Automatic Pick And Place Machine |
|---|---|---|---|
| Application: | LED Lights, Electrical Products, Household Appliance | Power Supply: | 380AC 50HZ |
| Condition: | New | Weight: | 2500kg |
| Mounting Speed: | 90000 CPH | Dimension: | 3150mm*2250mm*1650mm |
| Feeders: | 48PCS | ||
| High Light: | Automatic LED Driver Making Machine,LED Driver Making Machine,Household Appliance SMT Machine |
||

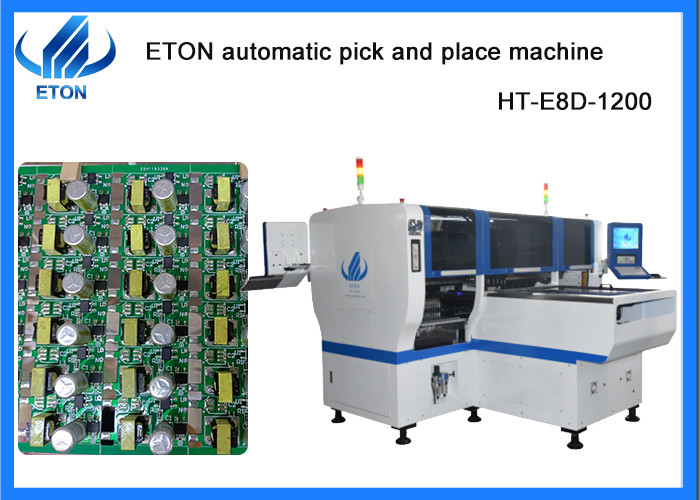

Household Appliance LED lighting driver making SMT machine
SMT Line solution
A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.
The blowing is the function of each machine:
Our advantage
We can provide SMT line solution for you!
Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc

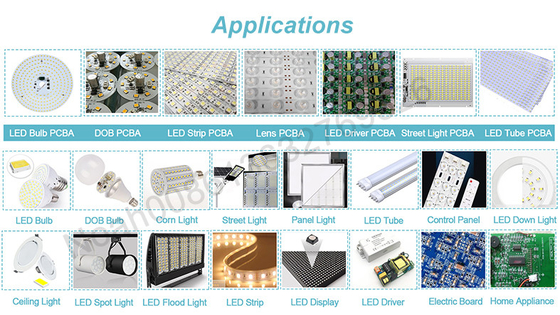

1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
2.Provide Overseas engineers for Free installation and free training.
3.TOP brand of China SMT machine manufacturer,500 employees for ETON

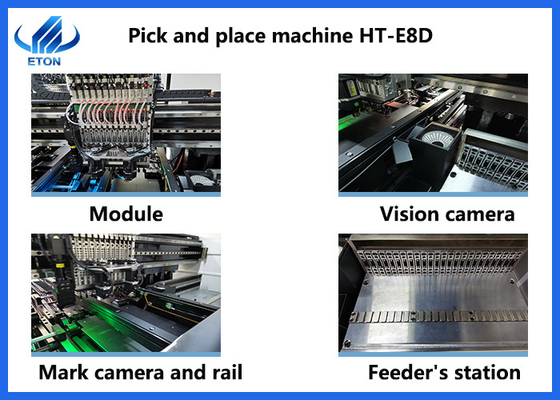

Description
Exclusive patented technology
Technical parameter
| Model | HT-E8D-1200 |
| Total Weight | 2500kg |
| PCB Length Width | Max:1200*300mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| Software | R&D independently |
| Mounting Speed | 90000 CPH(The optimum speed ) |
| Components | LED , capacitors, resistors, IC, shaped components, etc. |
| Components Space | 0.2mm |
| No. of Feeders Station | 48 PCS |
| No. of nozzles | 24 PCS |
| Power | 380AC 50HZ |
| Power Consumption | 8 KW |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max length :1200 mm |
| Transmission Speed | ＞1000mm/sec |
| X,Y,Z Axis Drive way | High-end magnetic linear motor + Servo motor |
| Feeding way | Electric feeder with double motor |
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 200 practical patents, 49 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
