Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0201 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | New,100% Original,Brand-new |
| Mounting Speed: | 98000 CPH | Brand: | ETON |
| High Light: | Non Replaceable SMT Mounting Machine,SMT Mounting Machine for 40*40mm,SMT Mounting Machine for 0201 |
||

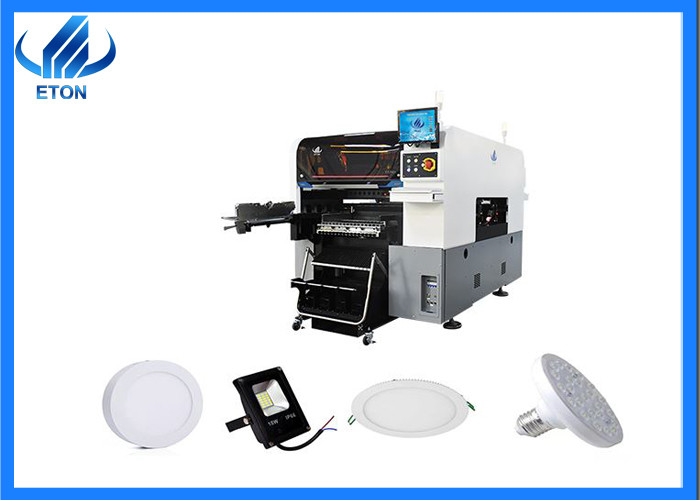

20 heads Non replace modular head SMT mounter machine
Product Introduction
The YT20S multi-function SMT mounting machine combines high-speed and versatility, achieving super practicality among products of the same class. It uses high-speed universal integrated mounting heads, without the need to replace the mounting heads, and supports 0201-40 * 40mm packaging materials and IC backpack materials, enabling the company to achieve a production capacity of 98000 CPH under optimal conditions.
Parameter
| Product name | SMT mounting machine |
| Product model | YT20S |
| Length (mm) | 2788 |
| Width (mm) | 1686 |
| Height (mm) | 1375 |
| Total weight(kg) | 1700 |
| System | Windows 7 |
| No. of camera | 6 sets |
| Power | 380AC 50HZ |
| Power consumption | 6KW |
| Components range | Min:0201-40*40mm packages and IC etc. |
| Mounting speed | 98000CPH(Optimum speed) |
details of components
1. docking cart
The function of docking cart is the support of the smd components, it is the basement of feeders. Feeder install on the docking cart with the electrical and feeding the smd component nonstop.
So with docking cart spare part, there could be achieve the quickly change line to produce different product, also could connect the tape reel more convinent. Short the changing line time.
2. IC tray feeder
IC Tray feeder is using for feeding IC(QFP/BGA/etc). YT20 could be using feeder feeding and IC tray feeder at the same time. Suitable for electrical board, high precision board manufacturing.
Related machine
In the SMT industry, we are professional, we are not only a leading manufacturer of placement machines, but also a manufacturer of some peripheral equipment, we can also provide you with some other SMT machines, such as printer machine,conveyor,dispenser machine, reflow over, etc.
Pick and place machine Machine main part
Software:Software controls the operation of the machine and ensures the normal operation of the machine. The software of our company’s machine can provide free lifetime upgrades
Mounting heads:Mounting components on PCB board.
Feeder station:used to carry feeder.
Mark Camera:PCB board placement program based on scanning Mark points.
company profile
Shenzhen ETON Automation Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment. The company has SMT high-speed pick and place machine division, precision solder paste stencil printer division, high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
