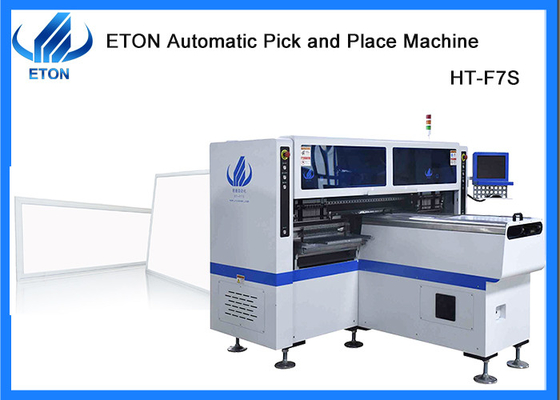

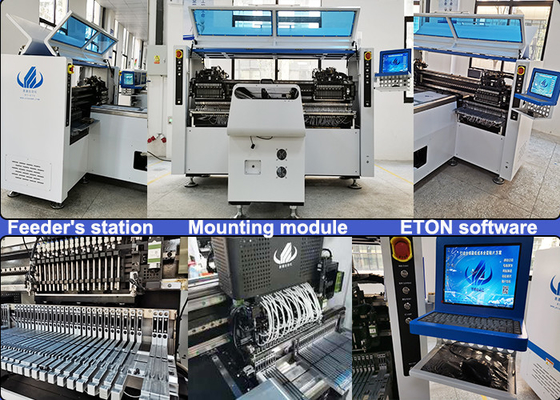

Four materials mounting 180000 CPH SMT pick and place machine
Packages
As for the package of the machine, we put it in film packing and foam cotton, to prevent the dust and water of protecting the machine and keep dry of the machine during transportation, and equip with wooden boxes to transport to the specified port.
Service
Provide a suitable service for our clients is the vital mission for our company, for sure, here are some tips as blowing:
- Provide a whole production line
- Within the warranty period, any problems of the machine, or the replacement of accessories is free to solve
- After the warranty period, every year we will arrange engineers to check or online operating the machine 1-2 times freely
- Enjoy a free up grade of the machine
Description
- High-end magnetic linear motor+ servo motor

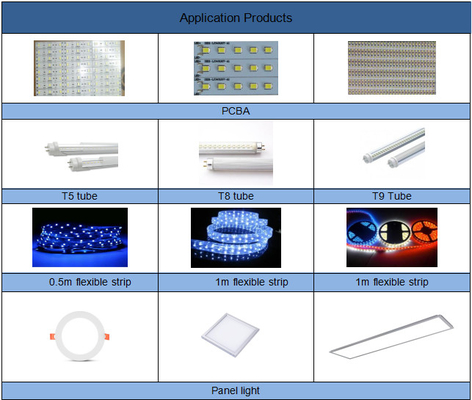

- Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 4 types of materials with high capacity. available for board with any proportion of LED chip and resistor.
- Two mounting modules, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
- Exclusive patent technology: Group to pick and group to mount.
IPC9850 Capacity: 150000-180000 CPH
Patent number: ZL 2011 2 0237740.9/ ZL 2011 2 0334606.0/ ZL 2012 20178869.1/ ZL 2012 2 0415505.0/ZL 2012 20415044.7/ZL 2012 2 0415356.8/ ZL 2012 2 0415061.0
Technical parameter
| Model |
HT-F7S |
| Dimension |
| Length |
2700mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB |
| PCB Length Width |
Max:1200*330mm Min:100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting Mode |
Group to take and group to mount |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
5 PCS ( Digital camera) |
| Vision alignment, MARK correction |
| Mounting Precision |
±0.02mm |
| Mounting Height |
≦5mm |
| Mounting Speed |
150000~180000 CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Speed |
0.5mm |
| No. of Feeders Station |
68 PCS |
| No. of nozzles |
34 PCS |
| Power |
380AC 50 HZ |
| Power Consumption |
6kw |
| Operating Environment |
23℃±3℃ |
| Transmission Speed |
Max Length :1200 mm |
| Transmission Direction |
Single(left→ right or right→ left) |
| Transmission Mode |
Online drive |
| Position Mode |
Optical |
| Gas consumption |
0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor+ servo motor |
| Feeding way |
Electric feeder with double motor |
