Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | New,100% Original,Brand-new |
| Mounting Speed: | 180000 CPH | Feeders: | 68 |
| Tape Width: | 24mm,8mm,12mm | Local Service: | India, Egypt, Vietnam |
| High Light: | SMT Mounting Machine 18w CPH,components 0402 SMT Mounting Machine,Lamp Production pick and place machine |
||

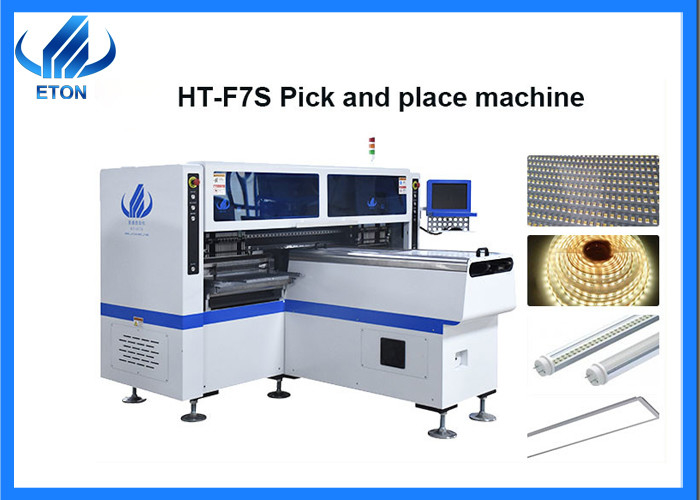

SMT Mounting Machine: F7S for Lamp Production 180000CPH pick and place machine
Recommended scheme for lamp production (F7S)
Suitable for the production of 0.6, 0.9, 1.2 meters of lamps, with a capacity of 15k-18k
Printing machine: use steel mesh to leak solder paste onto the solder pad of PCB board
Docking station: transmission PCB board, with buffer function
Mounter: accurately mount components to the designated position of PCB
Reflow soldering: pass the PCB board through the reflow soldering furnace, so that the components and PCB boards can be better bonded.
Technical parameter
| Model | HT-F7S |
| Dimension | |
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB | |
| PCB Length Width | Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separately placing |
| Vision System | |
| No. of Camera | 5 sets ( Digital camera) |
| Vision alignment, MARK correction | |
| Repeat Mounting Precision | ±0.02mm(Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 150000~180000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Feeding System | |
| No. of Feeders Station | 68 PCS |
| No. of head | 34 PCS |
| Feeding way | Electric feeder with double motor |
Introduction of Our company
Since its establishment in 2011, ETON has been committed to the development and production of SMT placement machines.
Strong reach and develop technology team, support machine upgrade continuously, support client strong technical support.
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province, machine capacity more than 50 units/month.
Good and professional service. Provide engineer Door-to-door service, support video online training, video training.
share,free replaced machine core part during warranty. And also we could provide professional SMT line solution.
Exhibition
Participating in exhibitions shows the strength of a company. Our company attends exhibitions every year, including Guangya Exhibition, led Chongqing Exhibition, Shanghai Munich exhibition, etc. of course, we not only have domestic exhibitions, but also have many exhibitions abroad, such as India, Egypt, Turkey, Pakistan, etc.
FAQ
Q:Is your machine difficult to operate?
A:You can rest assured that our machine operation is very simple. Our software supports Chinese and English. We will have engineers to teach you by hand. We will not leave until you can operate independently. We also support online video teaching.
Q:What strength do you have?
A:We have obtained 112 utility patents, 9 invention patents and 12 software copyrights
Q:Do you have any customers abroad?
A:Yes, we have many customers abroad, such as rangdong, rk, Surya, calcom, polycab, etc
Q: Are you a trade company or a manufacturer?
We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
Q: What is your delivery date?
The delivery date is about 20 days upon the full payment.
