Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Pick And Place Machine | Condition: | New,100% Original,Brand-new |
| Mounting Speed: | 180000 CPH | Feeders: | 68 |
| Tape Width: | 24mm,8mm,12mm | Local Service: | India, Egypt, Vietnam |
| High Light: | SMT Mounting Machine for Bridge Rectifiers,SMT Placement Machine For Capacitors,SMT Placement Machine For Resistors |
||

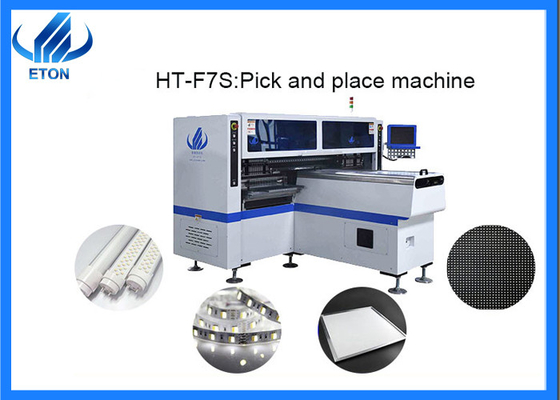

SMT Mounting Machine: F7S for Lamp Production 180000CPH pick and place machine
Recommended scheme for lamp production (F7S)
Suitable for the production of 0.6, 0.9, 1.2 meters of lamps, with a capacity of 15k-18k
Printing machine: use steel mesh to leak solder paste onto the solder pad of PCB board
Docking station: transmission PCB board, with buffer function
Mounter: accurately mount components to the designated position of PCB
Reflow soldering: pass the PCB board through the reflow soldering furnace, so that the components and PCB boards can be better bonded.
Technical parameter
| Model | HT-F7S |
| Dimension | |
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB | |
| PCB Length Width | Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separately placing |
| Vision System | |
| No. of Camera | 5 sets ( Digital camera) |
| Vision alignment, MARK correction | |
| Repeat Mounting Precision | ±0.02mm(Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 150000~180000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Feeding System | |
| No. of Feeders Station | 68 PCS |
| No. of head | 34 PCS |
| Feeding way | Electric feeder with double motor |
Introduction of Our company
Shenzhen ETON Automation Equipment Co., Ltd., has devoted itself to researching
SMT placement machine and its peripheral equipment for 14 years. The company
also has a branch in Jiangxi Province. The total area reaches 50,000 square meters
and has the largest industrial park.
Service
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
24 hours online for you to answer.
Packages
Step 1: Packing in film package to prevent dust and water to the machine
Step 2: Packing in foam cotton to protect the outside of the machine
Step 3: Packing in vacuum package to keep dry of the machine during transportation
Step 4: Transportation by truck to specified port
FAQ
Q. What is your machines quality?
A. As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.
Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
