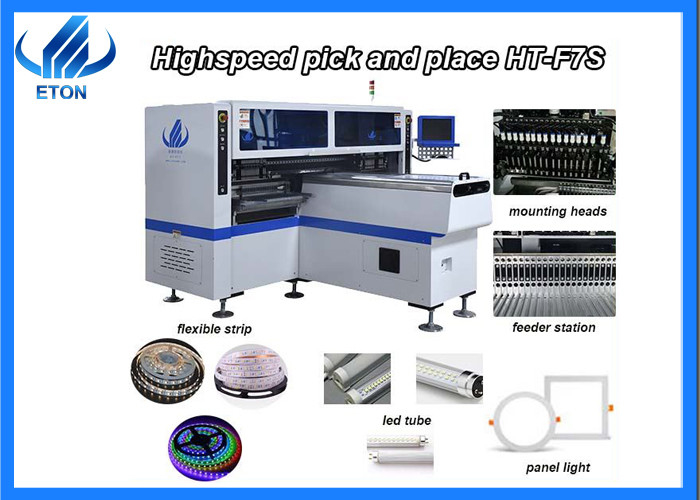

SMT Mounting Machine: F7S for Lamp Production 180000CPH pick and place machine
Recommended scheme for lamp production (F7S)
Suitable for the production of 0.6, 0.9, 1.2 meters of lamps, with a capacity of 15k-18k
Printing machine: use steel mesh to leak solder paste onto the solder pad of PCB board
Docking station: transmission PCB board, with buffer function
Mounter: accurately mount components to the designated position of PCB
Reflow soldering: pass the PCB board through the reflow soldering furnace, so that the components and PCB boards can be better bonded.
Technical parameter
| Model |
HT-F7S |
| Dimension |
| Length |
2700mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB |
| PCB Length Width |
Max:1200*330mm Min:100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting Mode |
Group picking and separately placing |
| Vision System |
| No. of Camera |
5 sets ( Digital camera) |
| Vision alignment, MARK correction |
| Repeat Mounting Precision |
±0.02mm(Repeat precision) |
| Mounting Height |
≦5mm |
| Mounting Speed |
150000~180000 CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Feeding System |
| No. of Feeders Station |
68 PCS |
| No. of head |
34 PCS |
| Feeding way |
Electric feeder with double motor |
Related machine
ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.
FAQ
Q. Does your machines have quality certificates?
A. We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich experience (more than 11 years) in LED light production line program.
Q. Can you accept CIF as the quoted price?
A. We only accept EXW as the quoted price for it is convenient and lower cost for both sides.
Q. Can I go and see if you have sold the equipment to India?
A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors,
that related to the number of the components, the time to send PCB board
and receive the board that will have influence on the speed when in production, and is decide for the actual products and needs.
