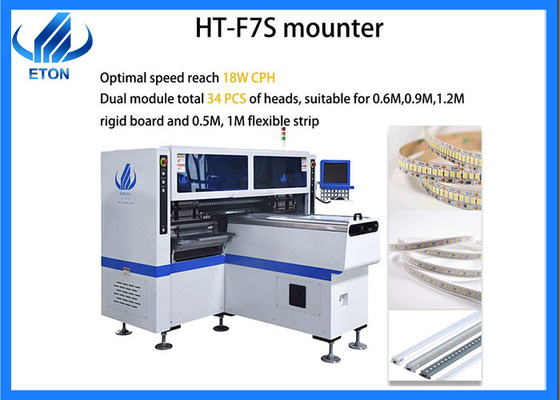

SMT Mounting Machine: F7S for Lamp Production 180000CPH pick and place machine
Recommended scheme for lamp production (F7S)
Suitable for the production of 0.6, 0.9, 1.2 meters of lamps, with a capacity of 15k-18k
Printing machine: use steel mesh to leak solder paste onto the solder pad of PCB board
Docking station: transmission PCB board, with buffer function
Mounter: accurately mount components to the designated position of PCB
Reflow soldering: pass the PCB board through the reflow soldering furnace, so that the components and PCB boards can be better bonded.
Technical parameter
| Model |
HT-F7S |
| Dimension |
| Length |
2700mm |
| Width |
2300mm |
| Height |
1550mm |
| Total Weight |
1700kg |
| PCB |
| PCB Length Width |
Max:1200*330mm Min:100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting Mode |
Group picking and separately placing |
| Vision System |
| No. of Camera |
5 sets ( Digital camera) |
| Vision alignment, MARK correction |
| Repeat Mounting Precision |
±0.02mm(Repeat precision) |
| Mounting Height |
≦5mm |
| Mounting Speed |
150000~180000 CPH |
| Components |
LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Feeding System |
| No. of Feeders Station |
68 PCS |
| No. of head |
34 PCS |
| Feeding way |
Electric feeder with double motor |
Related machine
ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
Package
Our packaging process is handled by professionals, and the foreign trade staff will also take photos and records on site, so that customers can be more assured.
Our transportation mode is generally sea transportation or air transportation, which is mainly determined according to the needs of customers.
Our advantages

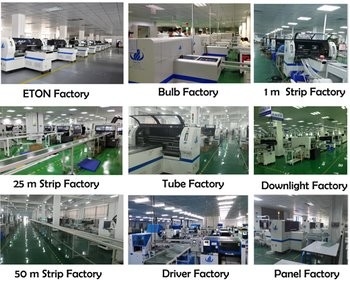

We have our own industrial park, covering an area of 520,000 square meters.
We have been in this business for over ten years.
We have office and local engineer in Egypt, India,etc.
We can control it remotely, give machine a free upgrade
Service
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
FAQ
Q: What products you sell?
A: Our company deal in the following products:
SMT equipment and accessories: pick and place machine, stencil printer machine, glue dispenser, conveyor, feeders, SMT nozzles,etc.
Q: Do you sell nozzles and spares?
A:Yes, we do sell nozzles and feeders, if you need any spares, just let us know.
Q:What is the difference between semi-automatic production line and full-automatic production line?
A:In short, fully automatic production lines are expensive, but require less labor. Semi-automatic production line is more affordable, but the labor will be more than the automatic line
Q: About technical offer
A: As for machine operation, we will arrange engineers to go to your factory for installation and teaching after you buy our machines.
If you have engineers who have been involved in the installation of SMT equipment, we can teach you how to install it online.
