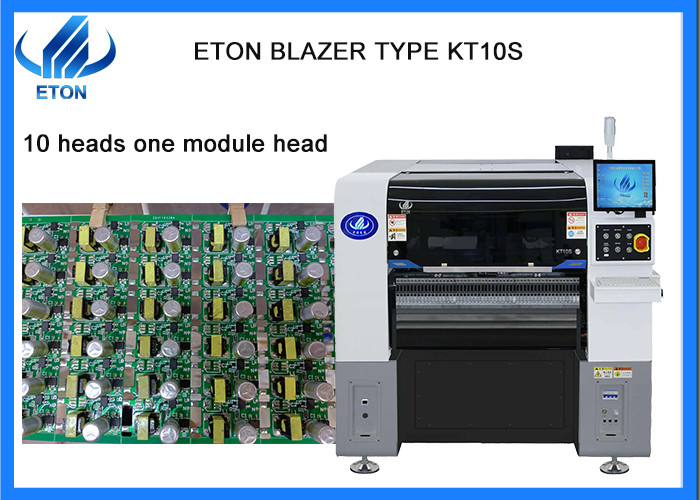

1.5KW Power SMT Pick And Place Machine 104 PCS Feeder Station

Large Image : 1.5KW Power SMT Pick And Place Machine 104 PCS Feeder Station

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE,CCC,SIRA,ISO
Model Number:	KT10S
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Name:	SMT Automatic Pick And Place Machine	Application:	LED Lights, Electrical Products, Household Appliance
Power Supply:	220V,50-60HZ	Warranty:	1 Year
Condition:	New	Weight:	2080KG
Mounting Speed:	48000 CPH(Optimal Speed)	Dimension:	149020201650mm
Pcb Thickness:	0.5-5 Mm
Highlight:	SMT Pick And Place Machine ISO , household appliance SMT Pick Place Machine , 104 PCS Feeder SMT Pick Place Machine

104 PCS feeder station 1.5KW power SMT pick and place machine

Machine main features

Single module X,Y,Z axis high-end magnetic linear motor, high precision than classic model
Y axis double drive gantry, higher speed more stability
The placement head adopt independent vacuum detection, improve the placement performance
Off-line programming, save time of changeover cycle
Equipped coordinate import function, more intelligent

Machine main parameter

Model	KT10S
Dimension	146020151654mm
Total weight	2080kg
PCB size	Max:500470mm(Length can be customized) Min:5050mm
PCB thickness	0.5-5mm
Mounting precision	CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ)
Mounting speed	48000 CPH(Optimal speed)
Components	LED, capacitor, resistors, shaped components,etc
Power consumption	220AC 50HZ 1.5KW
Feeder station	52 PCS(option 104 PCS), IC tray option
No. of head	10 PCS

Related Machine

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.

1.5KW Power SMT Pick And Place Machine 104 PCS Feeder Station 0

Certificates

As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 200 practical patents, 49 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,

1.5KW Power SMT Pick And Place Machine 104 PCS Feeder Station 1

Market

Our products had exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:

SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.

1.5KW Power SMT Pick And Place Machine 104 PCS Feeder Station 2
