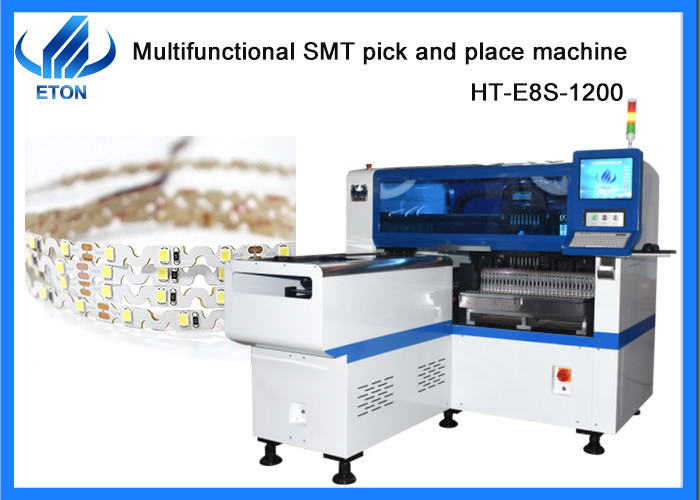

One module enough for LED electrical board SMT pick and place machine

One module enough for LED electrical board SMT pick and place machine
One module enough for LED electrical board SMT pick and place machine One module enough for LED electrical board SMT pick and place machine One module enough for LED electrical board SMT pick and place machine

Large Image :  One module enough for LED electrical board SMT pick and place machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA,ISO
Model Number: HT-E8S-1200
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Applicable Components: LED, Capacitor, Resistors, Shaped Components,etc
Name: SMT Automatic Pick And Place Machine Application: LED Lights, Electrical Products, Household Appliance
Power Supply: 380AC 50HZ Condition: New
Weight: 1700KG Mounting Speed: 45000 CPH
Dimension: 2550*1650*1550mm

One module enough for LED electrical board SMT pick and place machine


Features

  • Single module magnetic linear motor multifunctional pick and place machine.
  • Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
  • Component: Min. Size 0402, Max. Height 15mm.
  • Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

Exclusive Patented Technology:

  • Electronic feeder feeding system.
  • Vision alignment flight identification, Mark correction.
  • Non- stop material re-loading function.
  • Auto-optimization after coordinates generated, etc.



Machine parameter

ModelHT-E8S-1200
Dimension2550mm*1650mm*1550mm
Total weight1700kg
PCB length width

Max:1200*500mm

Min:100*100mm

PCB thickness0.5-5mm
PCB clampingAdjustable pressure pneumatic
Mounting modeGroup picking and separately placing, Separately picking and separately placing
Mounting precision±0.04mm
Mounting speed45000CPH
No. of feeders station28PCS single module
No. of head12 PCS single module

SMT Line solution
A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.
The blowing is the function of each machine:

  • Semi auto stencil printer is aim of leaking solder paste or patching adhesive onto the solder pad of PCB to prepare for the welding of components;
  • Pick and place machine is to mount light beads or other surface mounted components at the designated position of PCB board；
  • Reflow oven is to melt the solder paste to fix and bond the components and PCB board.
  • Conveyor is used for the connection between SMT production lines, as well as buffering, testing, testing PCB boards or manual plug-in of electronic components;

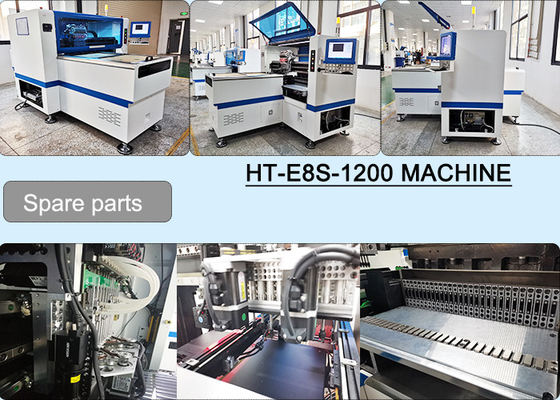

One module enough for LED electrical board SMT pick and place machine 0
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 200 practical patents, 49 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA,
etc.
One module enough for LED electrical board SMT pick and place machine 1
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
One module enough for LED electrical board SMT pick and place machine 2
