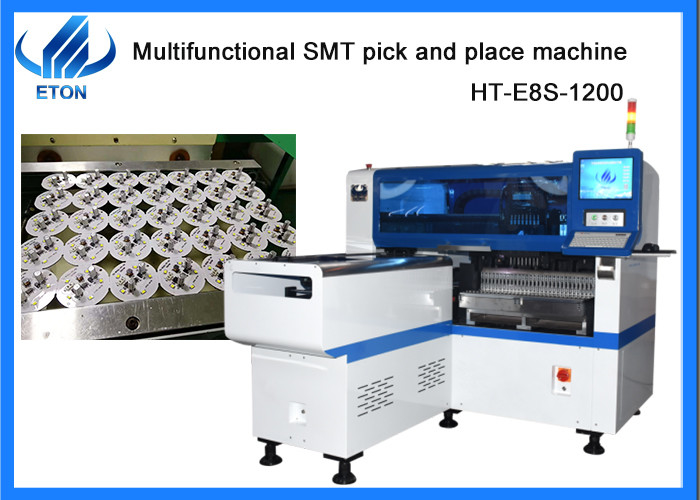

Classic SMT pick and place machine for LED lighting industry manufacture
Description
- Single module magnetic linear motor multifunctional pick and place machine.
- Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
- Component: Min. Size 0402, Max. Height 15mm.
- Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
Exclusive Patented Technology:
- Electronic feeder feeding system.
- Vision alignment flight identification, Mark correction.
- Non- stop material re-loading function.
- Auto-optimization after coordinates generated, etc.
Machine parameter
| Model |
HT-E8S-1200 |
| Dimension |
2550mm*1650mm*1550mm |
| Total weight |
1700kg |
| PCB length width |
Max:1200*500mm
Min:100*100mm
|
| PCB thickness |
0.5-5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and separately placing, Separately picking and separately placing |
| Mounting precision |
±0.04mm |
| Mounting speed |
45000CPH |
| No. of feeders station |
28PCS single module |
| No. of head |
12 PCS single module |

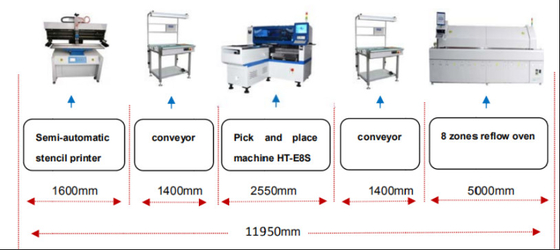

Machine application
Market
ETON company which not only provide our high speed SMT machine in Chinese market, but also overseas market to let our customer enjoy one site service, efficient production and low consumption.
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Service
Free Installation: provide free installation machine to ensure smooth production
Free Warranty:1 year warranty factory service, free replacement of space parts
Free Training: Professional training of operating and maintenance
Free Technical Support: 7*24 technical online support
Free Software Upgrade: Offer free software upgrade whole lifetime
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
24 hours online for you to answer.
