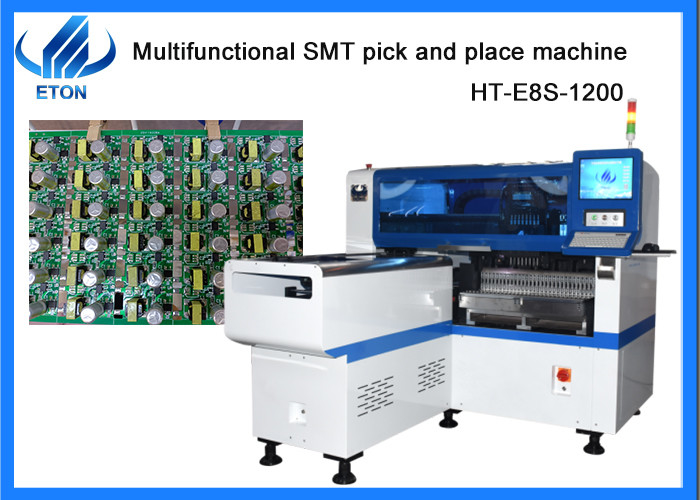

45000 capacity SMT pick and place machine total 12 heads can be customized
Description
- Single module magnetic linear motor multifunctional pick and place machine.
- Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
- Component: Min. Size 0402, Max. Height 15mm.
- Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
Exclusive Patented Technology:
- Electronic feeder feeding system.
- Vision alignment flight identification, Mark correction.
- Non- stop material re-loading function.
- Auto-optimization after coordinates generated, etc.
| Model |
HT-E8S-1200 |
| Dimension |
2550mm*1650mm*1550mm |
| Total weight |
1700kg |
| PCB length width |
Max:1200*500mm
Min:100*100mm
|
| PCB thickness |
0.5-5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and separately placing, Separately picking and separately placing |
| Mounting precision |
±0.04mm |
| Mounting speed |
45000CPH |
| No. of feeders station |
28PCS single module |
| No. of head |
12 PCS single module |
Our advantage

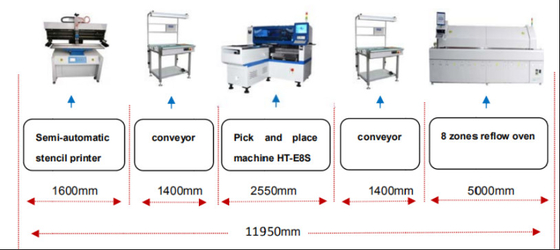

We can provide SMT line solution for you!
Pick and place machine/reflow oven/stencil printer/pcb conveyor/SPI/AOI.etc
1.Light Factory for :led bulbs,DOB,lens,panel light,downlight,streetlight,tube,0.5m,1m strip light,etc.
2.Provide Overseas engineers for Free installation and free training.
3.TOP brand of China SMT machine manufacturer,500 employees for ETON
Our Exhibitions
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
