Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | 0402 |
|---|---|---|---|
| Application: | LED Lights, Electrical Products, Household Appliance | Power Supply: | 380AC 50HZ |
| Weight: | 1700KG | Mounting Speed: | 45000 CPH |
| Dimension: | 2550*1650*1550mm | Feeders: | 28PCS |
| Pcb Thickness: | 0.5-5 Mm | ||
| High Light: | Mid Speed SMT Pick And Place Machine,Mid Speed Surface Mount Machine,1.2m PCB surface mount machine |
||

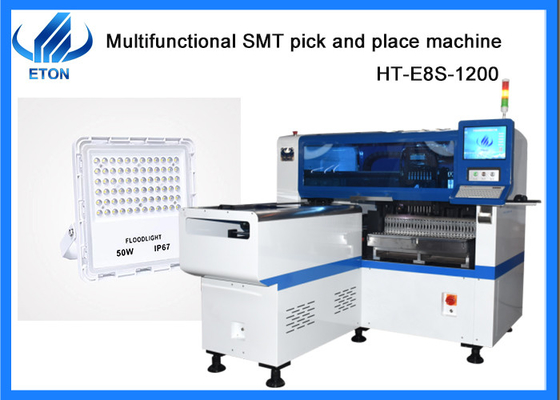

Mid speed multifunctional SMT pick and place machine Max 1.2m PCB
Features
Exclusive Patented Technology:

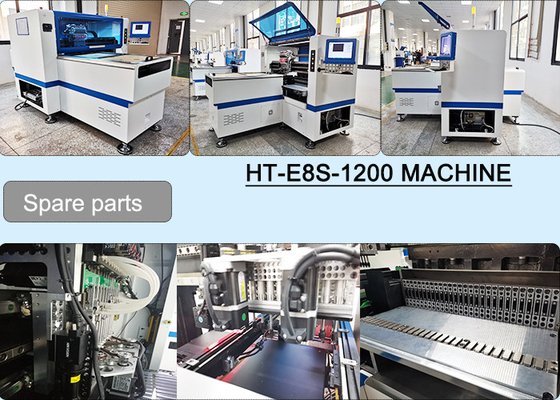

| Model | HT-E8S-1200 |
| Dimension | 2550mm*1650mm*1550mm |
| Total weight | 1700kg |
| PCB length width |
Max:1200*500mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing, Separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting speed | 45000CPH |
| No. of feeders station | 28PCS single module |
| No. of head | 12 PCS single module |
Shipping and Delivery
As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
Service
Related machine

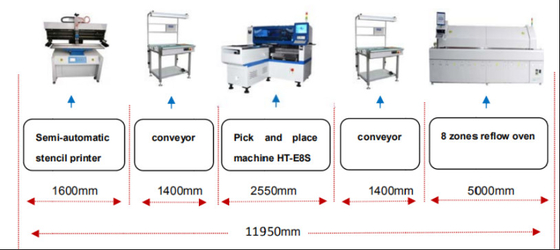

ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
