Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Applicable Components: | Min 0201~35*35 Mm Tape Reel Packages And IC Tray Feeder Etc. |
|---|---|---|---|
| Name: | SMT Automatic Pick And Place Machine | Application: | LED Lights, Electrical Products, Household Appliance |
| Power Supply: | 220V,50-60HZ | Weight: | 2080KG |
| Mounting Speed: | 48000 CPH | Dimension: | 1490*2020*1650mm |
| Feeders: | 52 PCS(option 104 PCS), IC Tray Option | Pcb Thickness: | 0.5-5 Mm |
| High Light: | 10 Heads SMT Machine,SMT Pick And Place Machine 48000 CPH,SMT Machine With Magnetic Linear Motor |
||

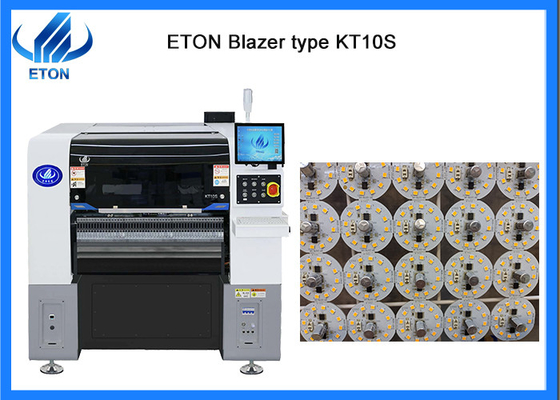

High-end magnetic linear motor 10 heads SMT pick and place machine
Description
Vacuum Sensing Device
Each placement heads with independent detection function,which inproves the stability of the equipment and the reliability of the product.
Machine main features
Machine main parameter

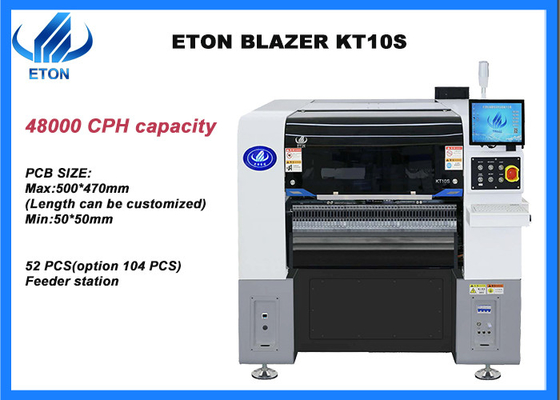

| Model | KT10S |
| Dimension | 1460*2015*1654mm |
| Total weight | 2080kg |
| PCB size | Max:500*470mm(Length can be customized) Min:50*50mm |
| PCB thickness | 0.5-5mm |
| Mounting precision | CHIP±0.03mm, QFP±0.025mm, Cpk≧1.0(3σ) |
| Mounting speed | 48000 CPH(Optimal speed) |
| Components | LED, capacitor, resistors, shaped components,etc |
| Power consumption | 220AC 50HZ 1.5KW |
| Feeder station | 52 PCS(option 104 PCS), IC tray option |
| No. of head | 10 PCS |
Machine application
Our advantage
Our Exhibitions
Participate in various exhibitions at home and abroad every year (except during the epidemic period)
Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
